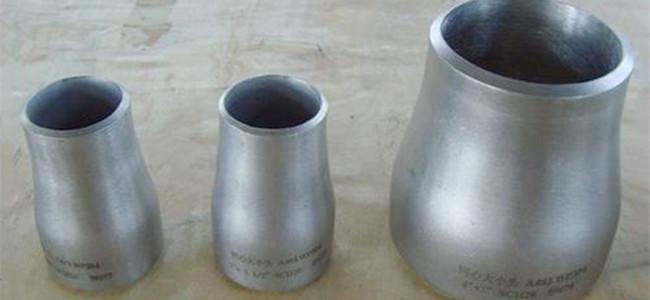

73mm End ASTM A106 ANSI 304 Stainless Steel Reducer
304 stainless steel pipe fitting Stainless steel reducer
Description
Stainless steel reducer. Its roundness should not be greater than 1% of the outer diameter of the corresponding end, and the allowable deviation is ± 3mm. The reducer materials are SY / t5037, GB / t9711, GB / t8163, American Standard ASTM A106 / A53 GRB, API 5L, apt5ct, ASTM A105, ASTM a234, ASTM A106, DIN German standards and customer requirements standards.
Technical data sheet
304 stainless steel pipe fitting Stainless steel reducer technical data sheet as below:
| NPS | Outside Diameter at Bevel | End-to- End, H | |
| Large End | Small End | ||
| 3/4X1/2 | 26.7 | 21.3 | 38 |
| 3/4X3/8 | 26.7 | 17.3 | 38 |
| 1x3/4 | 33.4 | 26.7 | 51 |
| lxl/2 | 33.4 | 21.3 | |
| 1.1/4x1 | 42.2 | 33.4 | 51 |
| 1.1/4X3/4 | 42.2 | 26.7 | |
| 1.1/4X1/2 | 42.2 | 21.3 | |
| 1.1/2x1.1/4 | 48.3 | 42.2 | 64 |
| 1.1/2x1 | 48.3 | 33.4 | |
| 1.1/2X3/4 | 48.3 | 26.7 | |
| 1.1/2x1/2 | 48.3 | 21.3 | |
| 2x1.1/2 | 60.3 | 48.3 | 76 |
| 2x1.1/4 | 60.3 | 42.2 | |
| 2x1 | 60.3 | 33.4 | |
| 2x3/4 | 60.3 | 26.7 | |
| 2.1/2x2 | 73 | 60.3 | 89 |
| 2.1/2X1.1/2 | 73 | 48.3 | |
| 2.1/2X1.1/4 | 73 | 42.2 | |
| 2.1/2x1 | 73 | 33.4 | |
Specification
Standard:GB / ANSI /JIS / DIN
Size:1/8"~2",1/2' ~ 6'
Usage:Oil Gas Water,connection for pipes
Characteristic
Stainless steel reducer. It is a kind of pipe fitting used for the pipe diameter changing. The commonly used forming processes are reducing pressing, expanding pressing or reducing plus expanding pressing. For some sizes of reducers, stamping can also be used. The reducing forming process of reducing pipe is to put the tube blank with the same diameter as the big end of the reducer into the forming die. By pressing along the axial direction of the tube blank, the metal moves along the die cavity and shrinks to form. According to the size of reducer, it can be divided into one-time pressing forming or multiple pressing forming.
Stainless steel reducer. In the process of reducing or expanding, cold pressing or hot pressing is determined according to different materials and reducing conditions. In general, cold pressing should be used as much as possible, but hot pressing should be used in case of severe work hardening caused by multiple diameter changes, thick wall or alloy steel materials.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
