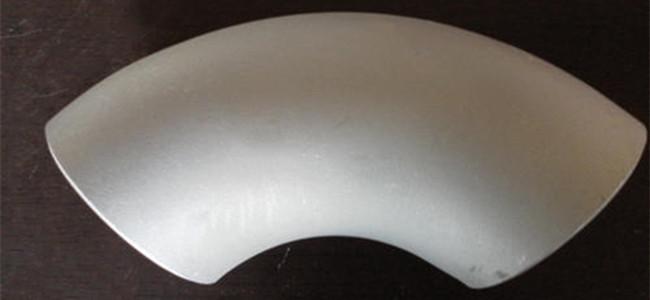

Convey Water Ss316 Pipe Fittings DIN Stainless Steel Elbow
316 ss pipe fittings Stainless steel elbow
Description
Stainless steel elbow is one of the elbow fittings, with different angles and content of elbow, fully show a certain competitive advantage. The thin and firm oxide film on the surface of stainless steel makes stainless steel have excellent corrosion resistance in all water quality, even if it is buried underground.
Stainless steel elbow is suitable for all kinds of water quality. In addition to disinfection and sterilization, there is no need to control the water quality. At the same time, there is no corrosion and excessive exudates. It can keep the water pure and sanitary, eliminate secondary pollution, and withstand the impact of high water flow up to 30 meters per second.
Technical data sheet
316 ss pipe fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
| 300 | 323.9 | 325 | 457 | 305 |
Specification
Standard:GB / ANSI /JIS / DIN
Size:3/4'',1/8' ~ 6',200mm
Usage:Convey Water Gas Oil
Characteristic
Stainless steel elbow has the advantages of high connection strength, anti vibration, one-time firm connection, avoiding the possibility of loose "movable joint", convenient and fast construction, avoiding on-site welding operation and threading operation, and long service life. The field corrosion test data show that the service life can reach 100 years, and almost no maintenance is needed. Therefore, the performance price ratio is very good, the operation life cost is low, and the economic benefit is remarkable.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
