Galvanized Elbow 40mm Industrial Steel Pipe Fittings

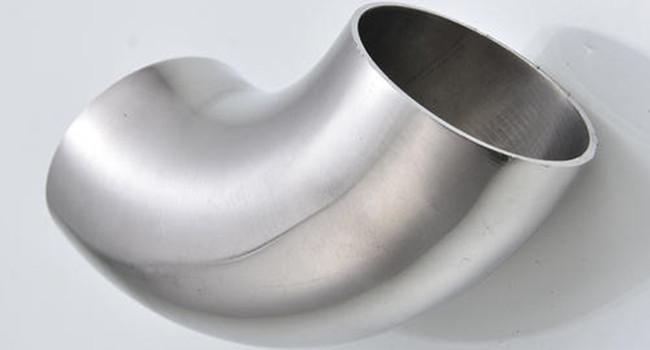

High pressure pipe fittings Stainless steel elbow
Description
Stainless steel elbow, One of its advantages is the convenience of field installation. The installation time is only 1 / 3 of the welding pipe fittings or threading, which shortens the construction period and cost and avoids the occurrence of water leakage. Elbow is controlled and used according to a certain way and principle in connection, which has good installation characteristics and value, and needs to be used in a certain way. Elbow in different fields and industries to use and promote, to ensure the safety of water quality and pollution-free, used in different places, play an important role. It has excellent mechanical and physical properties.
Technical data sheet
High pressure pipe fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
| 300 | 323.9 | 325 | 457 | 305 |
| 350 | 355.6 | 377 | 533 | 356 |
Specification
Standard:GB / ANSI /JIS / DIN
Material:Stainless Steel
Size:40mm,25mm,200mm
Characteristic
Stainless steel elbow, Its strength is very high, 2 times that of galvanized pipe, 3 times that of copper pipe and 8-10 times that of PP-R pipe. It can well withstand vibration impact. After being connected, it has the characteristics of no water leakage, no burst, fire prevention and earthquake resistance, so it is very safe and reliable. At the same time, good thermal insulation performance, especially suitable for hot water transmission, plays an important role in linking.
Stainless steel elbow has the characteristics of reliable and safe connection, convenient and fast construction, good sanitation and environmental protection performance, small flow and pressure loss, strong system compatibility, open installation and concealed installation, no renewal and maintenance, superior economic performance and wide application range. It is suitable for cold and hot water, direct drinking water, heating, air conditioning, fire fighting, gas and other civil low-pressure fluid transportation, and can also be used for medicine, drinking water and other applications Low pressure fluid transportation in material, food, chemical and other industries.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
