Construction SS316L Industrial Steel Pipe Fittings Anti Erosion

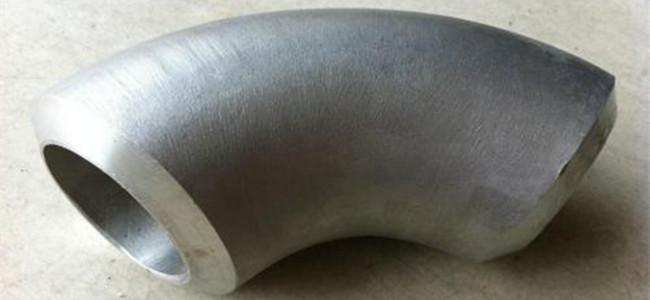

Stainless pipe fittings Stainless steel elbow
Description
Stainless steel elbow will not produce erosion, pitting, corrosion or wear. Stainless steel is still one of the strongest metal materials used in construction. Because stainless steel has good corrosion resistance, it can make the structural components permanently maintain the integrity of the engineering design. Chrome stainless steel stamping elbow also integrates mechanical strength and high extensibility, which is easy to process and manufacture components, and can meet the needs of architects and structural design staff. All metals react with oxygen in the atmosphere to form oxide films on the surface.
Technical data sheet
Stainless pipe fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | 90 degree elbow | ||
| A series | B series | Long radius | Short radius | |
| 15 | 213 | 18 | 38 | - |
| 20 | 26.9 | 25 | 38 | - |
| 25 | 33.7 | 32 | 38 | 25 |
| 32 | 42.4 | 38 | 48 | 32 |
| 40 | 483 | 45 | 57 | 38 |
| 50 | 603 | 57 | 76 | 51 |
| 65 | 76.1(73) | 76 | 95 | 64 |
| 80 | 88.9 | 89 | 114 | 76 |
| 100 | 1143 | 108 | 152 | 2 |
| 125 | 139.7 | 133 | 190 | 127 |
| 150 | 1683 | 159 | 229 | 152 |
| 200 | 219.1 | 219 | 305 | 203 |
| 250 | 273 | 273 | 381 | 254 |
| 300 | 323.9 | 325 | 457 | 305 |
| 350 | 355.6 | 377 | 533 | 356 |
| 400 | 406.4 | 426 | 610 | 406 |
Specification
Standard:GB / ANSI /JIS / DIN
Material:SS304 SS316L
Size:1/8"~2",1/2' ~ 6'
Characteristic
Stainless steel elbow is resistant to weak corrosive media such as air, steam and water and chemical corrosive media such as acid, alkali and salt. Also known as stainless acid resistant steel. In practical application, steel resistant to weak corrosive medium is often called stainless steel stamping elbow, while steel resistant to chemical medium is called acid resistant steel. Because of the difference in chemical composition, the former is not necessarily resistant to chemical medium corrosion, while the latter is generally stainless. Chromium stainless steel elbow also integrates mechanical strength and high extensibility, which is easy to process and manufacture components, and can meet the needs of architects and structural designers. All metals react with oxygen in the atmosphere to form oxide films on the surface.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
