Welding SS316L 2 Inch Stainless Steel Pipe Fittings

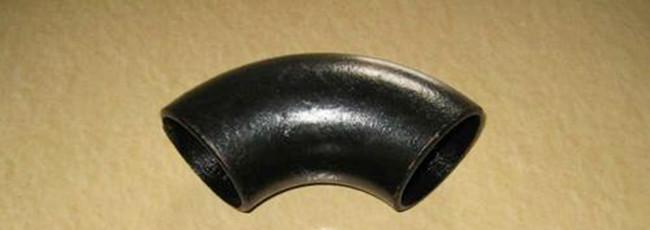

2 inch stainless steel pipe fittings Stainless steel elbow
Description
Stainless steel elbow is equipped with a lining at the nozzle. One part of the lining is located in the nozzle and is fixedly connected with the inner wall of the wide nozzle. The other part of the lining is located outside the nozzle. The lining outside the nozzle of the product is provided with a cutting. When the elbow is connected with the stainless steel pipe, it is easy to butt install, which can eliminate the tension generated by the pipe connection, and has strong anti deformation ability. After welding, the joint will not deform after long-time use, and the installation and decoration effect is good.
Technical data sheet
2 inch stainless steel pipe fittings Stainless steel elbow technical data sheet as below:
| DN | Outside diameter | Center to end dimensions | |
| A Series | B Series | Long radius | |
| 15 | 21.3 | 18 | 16 |
| 20 | 26.9 | 25 | 16 |
| 25 | 33.7 | 32 | 16 |
| 32 | 42.4 | 3S | 20 |
| 40 | 48.3 | 45 | 24 |
| 50 | 60.3 | 57 | 32 |
| 65 | 76.1(73) | 76 | 40 |
| 80 | 88.9 | 89 | 47 |
| 100 | 114.3 | 108 | 63 |
| 125 | 139.7 | 133 | 79 |
| 150 | 1683 | 159 | 95 |
| 200 | 219.1 | 219 | 126 |
| 250 | 273 | 273 | 158 |
Specification
Standard:GB / ANSI /JIS / DIN
Material:SS304 SS316L
Size:1/8"~2",1/2' ~ 6'
Characteristic
Stainless steel elbow relates to the field of architectural decoration, and its technical points are as follows: including the elbow body, the elbow body of the product includes a curved bending section and a straight line section respectively connected at both ends of the bending section, and also includes an arc-shaped bending part, the two ends of the bending section of the product are connected through the bending part, and the two are hollowed out. Through the setting of the bending part, the bending performance of the elbow body is enhanced, and the service life of the elbow body is also increased.
In the past decade, driven by the rapid development of China's macro economy, China's stainless steel pipe fitting industry has developed rapidly. Stainless steel pipe fittings are more and more popular in daily life and industrial application because of its environmental protection and safety, and play an important and irreplaceable role. Huge market, there must be fierce competition.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
