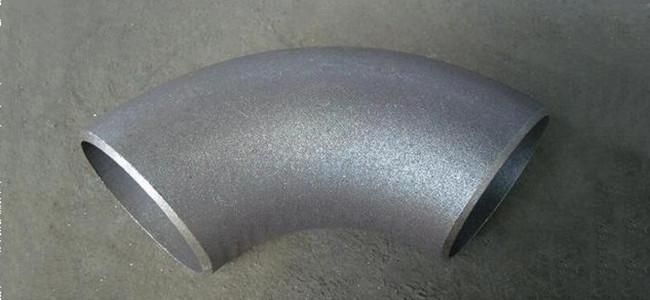

3/4" NPS 1/2 Elbow 316L Stainless Steel Pipe Fittings
316L stainless steel pipe fittings Stainless steel elbow
Description
Stainless steel elbow is used in the construction of steel structure, which has a good prospect. Because round steel and stainless steel elbow have their own characteristics and the most reasonable application range, the use of stainless steel elbow as a building column has better function than round steel. For example, in the corner position, the use of stainless steel elbow can make the most use of the construction area. Therefore, the stainless steel elbow has a better way out in the construction of steel structure residence and high-rise steel structure.
Technical data sheet
316L stainless steel pipe fittings Stainless steel elbow technical data sheet as below:
| Nominal Pipe Size | Center to End | Center to center | End to end | |||||
| H F | P | K | ||||||
| DN | NPS | LR | LR | SR | LR | SR | LR | SR |
| 15 | 1/2 | 16 | 38 | — | 76 | ― | 48 | — |
| 20 | 3/4 | 19 | 38 | — | 76 | ― | 51 | — |
| 25 | 1 | 22 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 1 1/4 | 25 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 1 1/2 | 29 | 57 | 38 | 114 | 76 | 83 | 62 |
| 50 | 2 | 35 | 76 | 51 | 152 | 102 | 106 | 81 |
| 65 | 2 1/2 | 44 | 96 | 64 | 190 | 127 | 132 | 100 |
| 80 | 3 | 51 | 114 | 76 | 229 | 152 | 159 | 121 |
Specification
Material:Stainless Steel
Size:3/4'',1/8' ~ 6'
Packing:Wooden Case
Characteristic
Stainless steel elbow, The domestic production in China is increasing year by year, especially as high-rise or long-span columns, the wall thickness has reached the application requirements. Box girder is widely used in construction in China. It is made of four thick plates by welding, and the wall thickness is also required to be high. If a part can be replaced by stainless steel elbow, it will bring obvious technical and economic effects. Some foreign production enterprises have been able to produce stainless steel elbows with large wall thickness because of the special production process. Compared with box girder, this kind of stainless steel elbow can greatly reduce the welding workload and reduce the environmental pollution caused by welding. The steel products such as rust resistance have more advantages and more beautiful appearance.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
