Tee 316 Stainless Steel Buttweld Pipe Fittings DN32

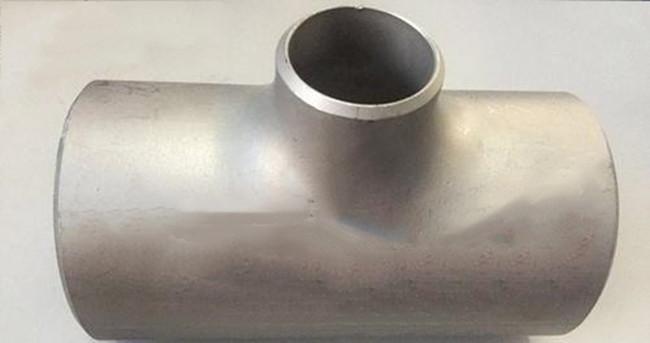

Stainless steel butt weld pipe fittings Stainless steel 316 tee
Description
Stainless steel 316 tee is a kind of pipe fittings used in the branch of pipe. For the manufacture of tee with seamless pipe, there are two kinds of processes commonly used at present, namely hydraulic bulging and hot pressing. The hydraulic bulging of tee is a kind of forming technology of expanding branch pipe through the axial compensation of metal material. The process is that the special hydraulic press is used to inject liquid into the tube blank with the same diameter as the tee, and the tube blank is extruded by the two horizontal side cylinders of the hydraulic press. The volume of the tube blank becomes smaller after extrusion, and the pressure of the liquid in the tube blank increases with the decrease of the volume of the tube blank. The metal material flows along the inner cavity of the die under the dual action of the side cylinder and the liquid pressure in the tube blank and expands out the branch pipe.
Technical data sheet
Stainless steel butt weld pipe fittings Stainless steel 316 tee technical data sheet as below:
| Nominal Diameter | Outside Diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15x15x15 | 1/2x1/2x1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15x15x10 | 1/2x1/2x3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15x15x8 | 1/2x1/2x1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20x20x20 | 3/4x3/4x3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20x20x15 | 3/4x3/4x1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20x20x10 | 3/4x3/4x3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25x25x25 | 1x1x1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25x25x20 | 1x1x3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25x25x15 | 1x1x1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32x32x32 | 1.1/4x1.1/4x1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32x32x25 | 1.1/4x1.1/4x1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32x32x20 | 1.1/4x1.1/4x3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32x32x15 | 1.1/4x1.1/4x1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
Specification
Material:Stainless Steel
Size:1/8"~2",1/2' ~ 6'
Shape:Equal/Reducer
Characteristic
Stainless steel tee is a kind of hydraulic bulging equipment with large tonnage. At present, it is mainly used in the manufacture of stainless steel tee with standard wall thickness less than dn400 in China. According to manufacturing standards, it can be divided into national standard, electrical standard, water standard, American Standard, German standard, Japanese standard, Russian standard, etc., as follows: GB / t12459, GB / T13401, ASME b16.9, sh3408, sh3409, Hg / t21635, DL / T 695, SY / T 0510, DIN 2615.
Package
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time
Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
