2 Inch 4 Inch Stainless Steel Forged Flanges Convey Water Gas Oil
Stainless steel pipe flanges Stainless steel flange

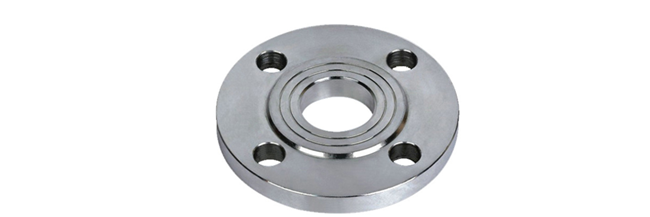

Description of Stainless steel flange
Stainless steel flange, in order to prevent intergranular corrosion caused by heating, the welding current should not be too large; at this time, the current should be about 20% less than that of carbon steel electrode, the arc should not be too long, the intermediate layer should be cooled quickly, and welding should be reduced. When welding stainless steel flange, repeated heating will cause carbide precipitation, thus reducing corrosion resistance and mechanical properties.
Technical data sheet of Stainless steel flange
Stainless steel pipe flanges Stainless steel flange technical data sheet as below:
| Nominal diameter | 16kg=l. 6MPa | ||||
| outer diameter | Bolt hole distance | Bolt diameter | Bolt hole number | Flange thickness | |
| DN10 | 90 | 60 | 14 | 4 | 14 |
| DN15 | 95 | 65 | 14 | 4 | 14 |
| DN20 | 105 | 75 | 14 | 4 | 16 |
| DN25 | 115 | 85 | 14 | 4 | 16 |
| DN32 | 140 | 100 | 18 | 4 | 18 |
| DN40 | 150 | 110 | 18 | 4 | 18 |
| DN50 | 165 | 125 | 18 | 4 | 20 |
| DN65 | 185 | 145 | 18 | 4 | 20 |
| DN80 | 200 | 160 | 18 | 8 | 20 |
| DN100 | 220 | 180 | 18 | 8 | 22 |
| DN125 | 250 | 210 | 18 | 8 | 22 |
| DN150 | 285 | 240 | 22 | 8 | 24 |
| DN200 | 340 | 295 | 22 | 8 | 26 |
Specification:
| Flange outer diameter | 75mm—2190mm |
| Diameter of center circle of bolt hole | 50mm—2130mm |
| Diameter of bolt hole | 11mm—30mm |
| Number of bolt holes | 4pcs一48pcs |
| Thread | M10—M27 |
| Flange thickness | 12mm—58mm |
| Tube outer diameter | A(17. 2-2032MM) B(14-2020MM ) |
| Flange inner diameter | A(18-2036MM ) B(15-2024MM) |
| Theoretical weight of flange | 0.36 kg --234.6kg(DN 1800) |
| Flange pressure | 0.25MPA-4.0MPA |
Specification of Stainless steel flange
Standard:GB/T10002.2-2003
Size:40mm,1/8' ~ 6',25mm
Surface treatment:brushedor Customer's Requiment
Characteristic of Stainless steel flange
Stainless steel flange is easy to crack after welding. If the same type of stainless steel electrode is used for welding, it must be preheated to more than 300 ℃, and slowly cooled to about 700 ℃ after welding to avoid flange cracking. If the weldment can not be heat treated after welding, the appropriate stainless steel flange electrode should be selected. In order to improve corrosion resistance and weldability, stable elements such as titanium, niobium and molybdenum are added appropriately.
Package of Stainless steel flange
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time of Stainless steel flange
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
