ASME B16.9 A234 WPB Carbon Steel Pipe Fittings CS Elbow
ASME B16.9 A234 WPB Carbon Steel Pipe Fittings CS elbow

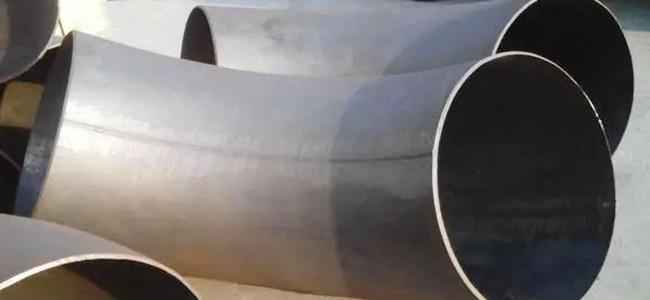

Description of CS elbow
CS elbow is the connector of two large diameter pipes. Usually, two elbows are used to connect the two ends of the pipe, plus a number of fastening bolts. CS elbow has good plasticity and low strength. After adding proper amount of carbon, the carbon will harden and the plasticity will decrease. The rigidity of carbon steel elbow is poor, which is suitable for the situation with pressure ≤ 4MPa.
Technical data sheet of CS elbow
ASME B16.9 A234 WPB Carbon Steel Pipe Fittings CS elbow technical data sheet as below:
| Products | Seamless Butt-Welded Carbon Steel Pipe Fittings | |
| Brand: Kingmetal OEM Brand is available | ||
| Item | Elbow L/R S/R,Equal Tee,Reducing Tee,Concentric Reducer,Eccentric Reducer,Cap, Bend | |
| Standard | ASME | ANSI B16.9, ANSI B16.28, MSS-SP-75 |
| DIN | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 | |
| SGP | JISB2313 | |
| EN | EN10253-1 EN10253-2 | |
| Material | ASME | A234 WPB,A234 WP1,A234 WP5,A234.WP9 |
| A234 WPB11,A234 WPB12,A234 WPB22,WP91 | ||
| A420,WPHY42,WPHY52,WPHY60,WPHY65 | ||
| WPHY70,WP304,WP304L,WP304H,WP316 | ||
| WP316L,WP321,WP347,WP347H | ||
| DIN | ST37.0,ST35.8,ST45.8,S235JR,P235GH,P265GH | |
| 10 CrMo91, 15CrMo, 12Cr1 MOW | ||
| JIS | JIS G3454.STPG370.TPG410 | |
| Surface | Black paint/right paint/Galvanized | |
| Marking | As customer's requirements | |
Specification of CS elbow
Size: 1/2''-72',1/2"-4 8"
Thickness: 2mm-50mm
Working pressure: 16-31.5MPa
Characteristic of CS elbow
CS elbow is heated to a certain temperature and insulated for a period of time, and then cooled gradually, which is called quenching. The purpose of quenching is to better eliminate the structural defects of elbow, improve the structure, make the composition symmetrical, improve the physical properties and reduce the internal stress.
| Standard | ANSI B 16.9 | JIS B2311 | DIN2605-2617 | GOST | GB |
| Min | DN15 | DN15 | DN15 | DN15 | DN15 |
| Max | DN1200 | DN1200 | DN1200 | DN1200 | DN1200 |
Package of CS elbow
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time of CS elbow
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
