3/4" Carbon Steel Tee ANSI B16.9 A234 For Gas Air Connect Pipes
3/4" Carbon Steel Pipe Fittings ANSI B16.9 A234 Carbon tee

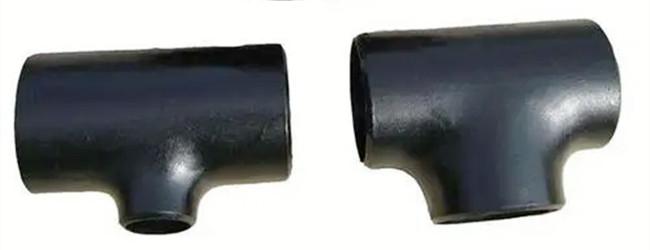

Description of ANSI B16.9 A234 Carbon tee
Carbon tee is a polygonal ring shell or a polygonal fan-shaped shell with closed ends, which is welded at first. After being filled with pressure medium, internal pressure is applied. Under the action of internal pressure, the cross section gradually turns from polygon to circle, and finally becomes a circular ring shell. Carbon tee has good frost resistance and heat resistance. At - 20 ℃, it has good low-temperature impact resistance, will not freeze crack, and can withstand low temperature below 100 ℃.
Technical data sheet of ANSI B16.9 A234 Carbon tee
3/4" Carbon Steel Pipe Fittings ANSI B16.9 A234 Carbon tee technical data sheet as below:
| DN | Outside diamenter | Center to end | ||
| In | D1*D2 | C | M | |
| 20*20 | 3/4*3/4 | 25*25 26.7*26.7 | 29 | 29 |
| 20*15 | 3/4*l/2 | 25*20 26.7*21.3 | 29 | 29 |
| 25*25 | 1*1 | 32*32 33.4*33.4 | 38 | 38 |
| 25*20 | 1*3/4 | 32*25 33.4*26.7 | 38 | 38 |
| 32*32 | 1 1/4*1 1/4 | 38*38 42.2*42.2 | 48 | 48 |
| 32*25 | 1 1/4*1 | 38*32 42.2*33.4 | 48 | 48 |
| 40*40 | 1 1/2*1 1/2 | 45*45 48.3*48.3 | 57 | 57 |
| 40*25 | 1 1/2*1 | 45*32 48.3*33.4 | 57 | 57 |
| 50*50 | 2*2 | 57*57 60.3*60.3 | 64 | 64 |
Specification of ANSI B16.9 A234 Carbon tee
Standard: DIN,JIS,ANSI,ASME,GB
Working pressure: 16-31.5MPa
Thickness: 2mm-50mm
Size: 1/2' ~ 6'
Characteristic of ANSI B16.9 A234 Carbon tee
Carbon tee are generally made of 10, 20, A3, Q235A, 20g, 16Mn, ASTM a234, ASTM A105, ASTM A403, etc. The outer diameter ranges from 2.5 ″ - 60 ″, from 26 ″ - 60 ″ to welded tee. The wall thickness is 28-60mm. The pressure levels are divided into sch5s, sch10s, sch10, sch20, sch30, sch40s, STD, sch40, sch60, sch80s and XS; Sch80,Sch100,Sch120,Sch140,Sch160,XXS.
| ANSI B16.9 A234 Carbon tee | |
| Standards | ASME/ANSI B16.9, ASME/ANSI B16.ll, ASME/ANSI B16.28JIS B2311, JIS B2312, DIN 2605, DIN 2615, DIN 2616, DIN 2617, BS 4504, GOST 17375, GOST 30753, GOST 17378 |
| Bending radius | Short Radius(SR), Long Radius(LR), 2D, 3D, 5D, multiple |
| Degree | 45 / 90 / 180, or customized degree |
| Size Range | Seamless type: up to 28" Welded type: 28"-to 72" |
| WT Schedule | SCH STD.SCH10 to SCH160, XS, XXS, |
| Carbon Steel | A234 WPB, WPC; A106B, ASTM A420 WPL9, WPL3, WPL6, W PHY-42W PHY-46, W PHY- 52, W PHY-60, W PHY-65, W PHY-70, |
Package of ANSI B16.9 A234 Carbon tee
a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.
Delivery time of ANSI B16.9 A234 Carbon tee
Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
