ANSI B16.5 Stainless Steel Flanged Fittings Stainless Sus Flange
ANSI b16.5 stainless steel flanged fittings Stainless steel flange
Description
Stainless steel flange has a significant impact on the machinery industry and has made a significant contribution to economic growth. The forging process of stainless steel flange can be divided into phase change forging, roll forging, rotary forging and forging. Therefore, the development of flange makes the stainless steel flange forging industry develop all over the world. During welding, stainless steel flanges must be heated repeatedly to separate} impurities and prevent degradation of their corrosion resistance and mechanical properties.
Technical data sheet
ANSI b16.5 stainless steel flanged fittings Stainless steel flange technical data sheet as below:
| PN | DN | Mounting dimension | OD(outside diameter of the pipe) | Diameter of the raised face D2 | Bolts | GOST weight (kg) | Thickness | |||||
| Ouioide diameter. D(mm) | Bolts boles axis diameter | Inside diameter,d(mm) | Number of bolts'holes,d(mm) | Diameter of bolts'holes,d(mm) | flange ridge's height,h(mm) | Total thickness (h+b)mm | Thickness ss,b (mm) | |||||
| 1.6 | 40 | 145 | 110 | 46 | 45 | 88 | 4 | 18 | 1.96 | 3 | 20 | 17 |
| 50 | 160 | 125 | 59 | 57 | 102 | 4 | 18 | 2.58 | 3 | 22 | 19 | |
| 65 | 180 | 145 | 78 | 76 | 122 | 4 | 18 | 3.42 | 3 | 24 | 21 | |
| 80 | 195 | 160 | 91 | 89 | 133 | 4 | 18 | 3.71 | 3 | 24 | 21 | |
| 100 | 215 | 180 | 110 | 108 | 158 | 8 | 18 | 435 | 3 | 26 | 23 | |
| 125 | 245 | 210 | 135 | 133 | 184 | 8 | 18 | 6.38 | 3 | 28 | 25 | |
| 150 | 280 | 240 | 161 | 159 | 212 | 8 | 22 | 7.81 | 3 | 28 | 25 | |
| 200 | 335 | 295 | 222 | 219 | 268 | 12 | 22 | 10 | 3 | 30 | 27 | |
| 250 | 405 | 355 | 273 | 273 | 320 | 12 | 26 | 14.49 | 3 | 31 | 28 | |
| 300 | 460 | 410 | 325 | 325 | 370 | 12 | 26 | 17.78 | 4 | 32 | 28 | |
| 350 | 520 | 470 | 377 | 377 | 430 | 16 | 26 | 22.88 | 4 | 34 | 30 | |
| 400 | 580 | 525 | 426 | 426 | 482 | 16 | 30 | 31 | 4 | 38 | 34 | |
| 500 | 710 | 650 | 530 | 530 | 585 | 20 | 33 | 57.01 | 4 | 48 | 44 | |
Specification
Stainless steel flange material:
Stainless steel: ASTM A182, f304, f316l, f321, etc
Dual phase steel: S31803, S32205, S32750, etc
Size: dn10-dn600
Pressure: 150Lb, 300lb, 600Lb, 900lb, 1500Lb, 2500lb
Standards: ASME, ANSI, JIS, DIN, etc

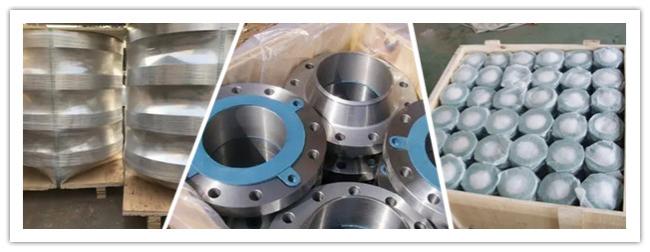

Package
Transport
Application
Stainless steel flange are widely used in petroleum, chemical industry, nuclear power plant, food manufacturing, construction, shipbuilding, papermaking, pharmaceutical and other industries.
