ASTM A105 Stainless Steel Flanges Flat Welding Flange
ASTM A105 Stainless Steel Flanges Flat welding flange
Description
Flat welding flange is applicable to the pipeline system with low pressure grade and no serious pressure fluctuation, vibration and shock. The advantage of flat welding flange is that it is easy to align when welding and assembling, and the price is relatively cheap, so it has been widely used.
Flat welding flange not only saves space and reduces weight, but also ensures that the joint will not leak and has good sealing performance. And the flange size is reduced, reducing the mass and space, which plays an important role in industrial application.
Specification
Diameter: DN10-DN2000
Material: 304, 304L, 316, 316L
Specification: 1 / 2 "~ 80"
Pressure: 0.25MPa ~ 250Mpa (150Lb ~ 2500lb)
Standards: ASTM / ANSI, API, ISO, BS, JIS, DIN, EN
Technical data sheet
ASTM A105 Stainless Steel Flanges Flat welding flange technical data sheet as below:
| inch | Nominal diameter | 10kg=l. 0MPa | ||||
| outer diameter | Bolt hole distance | Bolt diameter | Bolt hole number | Flange thickness | ||
| 3/8 | DN10 | 50 | 60 | 14 | 4 | 14 |
| 1/2 | DN15 | 59 | 65 | 14 | 4 | 14 |
| 3/4 | DN20 | 105 | 75 | 14 | 4 | 16 |
| 1 | DN25 | 115 | 85 | 14 | 4 | 16 |
| 1¼ | DN32 | 140 | 100 | 18 | 4 | 18 |
| 1½ | DN40 | 150 | 110 | 18 | 4 | 18 |
| 2 | DN50 | 165 | 125 | 18 | 4 | 20 |
| 2½ | DN65 | 185 | 145 | 18 | 4 | 20 |
| 3 | DN80 | 200 | 160 | 18 | 8 | 20 |
| 3½ | DN100 | 220 | 180 | 18 | 8 | 22 |
| 4 | DN125 | 250 | 210 | 18 | 8 | 22 |
Application
Flat welding flange is widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and so on.

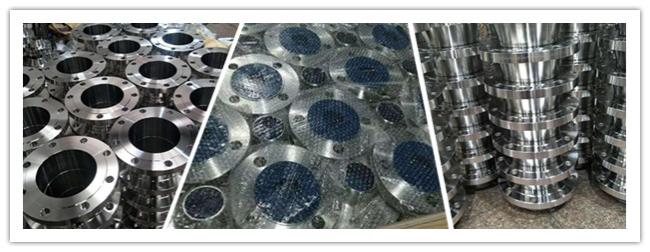

Package
Delivery
