5 Inch Full Size Stainless Steel Threaded Flanges 304 316L ASTM
5 inch full size 304 316L ASTM Stainless steel threaded flanges
Description
Stainless steel threaded flanges are often used in the installation of various pipelines, especially for large and long-distance metal transmission pipelines. The advantage of using a flange at the connection of the pipeline instead of directly connecting the pipeline is that the stainless steel flange is safer and more reliable and the interface is more firm.
Specification
Material:ASTM A182 F304,316L
class:150# 300# 600# 900# 1500#
Standard:ANSI, DIN, GB, ISO,ASME
Size:1/2 (15 NB) to 48 (1200NB) inch
Technical data shee
5 inch full size 304 316L ASTM Stainless steel threaded flanges technical data sheet as below:
| Nominal diameter | size(mm) | ||||
| diameter D | D1 | Bolt hole diameter | D2 | f | |
| 10 | 90 | 60 | 14 | 41 | 2 |
| 15 | 95 | 65 | 14 | 46 | 2 |
| 20 | 105 | 75 | 16 | 56 | 2 |
| 25 | 115 | 85 | 16 | 65 | 3 |
| 32 | 140 | 100 | 18 | 76 | 3 |
| 40 | 150 | 110 | 18 | 84 | 3 |
| 50 | 165 | 125 | 20 | 99 | 3 |
Characteristic
Stainless steel threaded flange works by connecting a pair of flange plates to the pipe ports to be connected, and then connecting the two pipes with flanges. The interface is often very fragile, and the use of flange can maintain higher sealing and durability.
Application
Stainless steel threaded flange, petroleum, chemical industry, textile, electric power, shipbuilding, metallurgy, food, pharmacy, construction, etc.

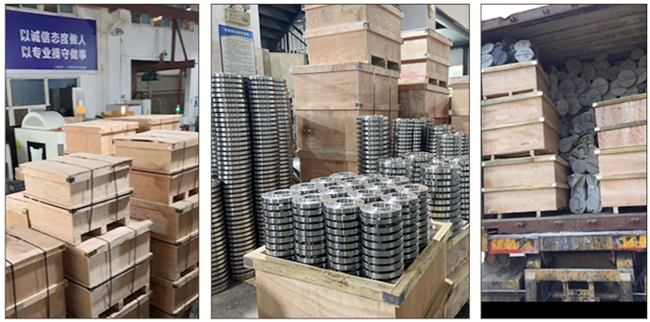

Package
