1D 1.5D Galvanized 304 Gr90 Stainless Steel Elbow Seamless
1D 1.5D galvanized 304 grade 90 Stainless steel elbow
Description
Stainless steel elbow is a seamless elbow product produced by using stainless steel pipe for blanking and then pushing or hot pressing. Elbows like this cannot be spliced, so they can only be pushed elbows or hot pressed elbows.
Specification
Size: 1 / 2 "- 72"
Standard: ANSI B16 9/16.28,ASME,ASTM
Thickness: sch20, STD, sch40, sch80, sch160, XXS
Surface treatment: Black antirust oil, hot dip galvanizing
Packing information: fumigation free wooden box and tray
Technical data sheet
1D 1.5D galvanized 304 grade 90 Stainless steel elbow technical data sheet as below:
| Nominal diameter | outside diameter | Dimension from center to end face | Center to center dimension | ||||
| 45°elbow | 90°elbow | 180°elbow | |||||
| Series A | Series B | Long radius | Long radius | Short radius | Long radius | Short radius | |
| 15 | 21.3 | 18 | 16 | 38 | - | 76 | - |
| 20 | 26.9 | 25 | 16 | 38 | - | 76 | - |
| 25 | 33.7 | 32 | 16 | 38 | 25 | 76 | 51 |
| 32 | 42.4 | 38 | 20 | 48 | 32 | 95 | 64 |
| 40 | 48.3 | 45 | 24 | 57 | 38 | 114 | 76 |
| 50 | 60.3 | 57 | 32 | 76 | 51 | 152 | 2 |
| 65 | 76.1(73) | 76 | 40 | 95 | 64 | 191 | 127 |
| 80 | 88.9 | 89 | 47 | 114 | 76 | 229 | 152 |
| 100 | 114.3 | 108 | 63 | 152 | 2 | 305 | 203 |
| 125 | 139.7 | 133 | 79 | 190 | 127 | 381 | 254 |
| 150 | 168.3 | 159 | 95 | 229 | 152 | 457 | 305 |
| 200 | 219.1 | 219 | 126 | 305 | 203 | 60 | 406 |
Characteristic
Stainless steel push elbow is made by hot pushing the raw materials first. The machinery used to push the elbow is called push machine. The push process is a process of diameter expansion and bending.
Stainless steel hot pressing elbow is a seamless elbow made by heating the stainless steel pipe and processing it with special mold equipment. It is quickly put into the quenchant after holding for a certain time to reduce its temperature and rapidly cool it at a speed greater than the critical cooling speed.
Application
Stainless steel elbow is widely used in petroleum, chemical industry, nuclear power station, food manufacturing, construction, shipbuilding, papermaking, medicine and other industries.

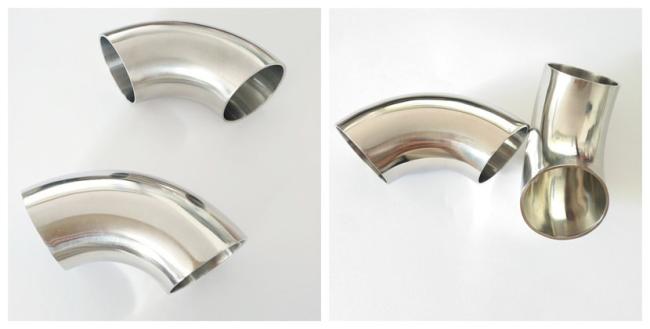

Product picture
