ANSI B16.9 WPB Carbon Steel Pipe Tee For Pipeline Connection
High quality 3/4" ANSI B16.9 A234 WPB Carbon steel tee
Description
Carbon steel tee is generally used for regulating valve device, pipeline drainage, etc. Concentric tube is conducive to fluid flow, and changing the diameter has less interference on the fluid flow pattern.
The carbon steel tee adopts concentric pipes with different diameters for gas and vertical flow liquid pipes. Since one side of pipes with different diameters is flat, which is conducive to discharging or discharging liquid and facilitating start-up and maintenance, the liquid pipes of horizontal devices are generally used for pipes with different diameters.
Specification
Size: 1/2" up to 110"
Connection: Welding
Certification: ISO, SGS, API
Material: Carbon Steel Pipe Fittings
Physical Property: ensile strength>=350Mpa,Elongation>=10%
Technical data sheet
High quality 3/4" ANSI B16.9 A234 WPB Carbon steel tee technical data sheet as below:
| Nominal diameter | outside diameter | Dimension from center to end face | Center to center dimension | Back to end dimension | |||||
| 45° | 90° | 180° | 180° | ||||||
| Series A | Series B | Short radius | Long radius | Short radius | Long radius | Short radius | Long radius | Short radius | |
| 15 | 21.3 | 18 | 16 | 38 | - | 76 | - | 48 | - |
| 20 | 26.9 | 25 | 16 | 38 | - | 76 | - | 51 | - |
| 25 | 33.7 | 32 | 16 | 38 | 25 | 76 | 51 | 56 | 41 |
| 32 | 42.4 | 38 | 20 | 48 | 32 | 95 | 64 | 70 | 52 |
| 40 | 48.3 | 45 | 24 | 57 | 38 | 114 | 76 | 83 | 81 |
| 50 | 60.3 | 57 | 32 | 76 | 51 | 152 | 112 | 106 | 100 |
| 65 | 76.1 | 76 | 40 | 95 | 64 | 191 | 127 | 132 | 121 |
| 80 | 88.9 | 89 | 47 | 114 | 76 | 229 | 152 | 159 | 159 |
Characteristic
Carbon steel tee is an elbow made of hot pressed or forged steel. Its connection mode is to directly weld tee fittings with steel pipes. The main manufacturing technical indexes of butt welded tee fittings are GB / T 12459, GB / T 13401, asmeb 16.9, sh 3408, sh3409, Hg / t21635, Hg / t21631 and SY / t0510.
Application
Carbon steel tee is widely used in petroleum, aerospace, pharmaceutical, chemical, metallurgy, electric power, engineering supporting and other industrial pipelines.

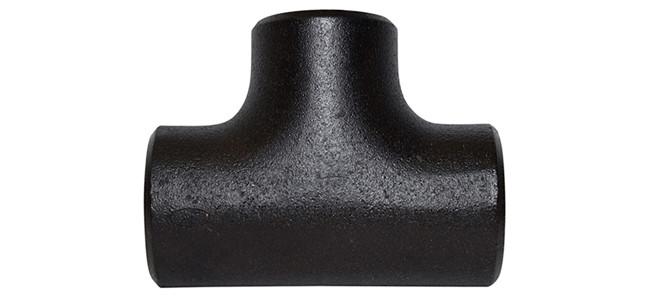

Product picture
