ASTM B16.11 A105 High Pressure Elbow 90 Degree
ASTM B16.11 A105 High Pressure 90 Degree High pressure elbow
Description
High pressure elbow does not need tube blank as raw material, which can save the cost of pipe making equipment and mold, and can obtain elbow with arbitrary large diameter and relatively thin wall thickness.
High pressure elbow can shorten the manufacturing cycle and greatly reduce the production cost Because no special equipment is required, it is especially suitable for on-site processing of large elbows.
The blank is a flat plate or developable surface, with simple blanking, easy accuracy assurance and convenient assembly and welding.
Specification
Size: 1/2' ~ 4'
Pressure: 3000lbs
Standard: ASME B16.11
Material Grade: A182 F316
Product Type: Forged Elbow
Technical data sheet
ASTM B16.11 A105 High Pressure 90 Degree High pressure elbow technical data sheet as below:
| Size | D | L | T | T1 |
| 19 | 19 | 28 | 1.25 | 1.5 |
| 25 | 25 | 33.5 | 1.25 | 1.5 |
| 32 | 32 | 41 | 1.25 | 1.5 |
| 38 | 38 | 48.5 | 1.25 | 1.5 |
| 45 | 45 | 56 | 1.5 | 2 |
| 51 | 51 | 60.5 | 1.5 | 1.65 |
| 57 | 57 | 65 | 1.5 | 2 |
| 63.5 | 63.5 | 65 | 1.5 | 2 |
| 76 | 76 | 77.5 | 1.65 | 2 |
| 89 | 89 | 89 | 2 | 2 |
Characteristic
High pressure elbow not only has good compressive capacity, but also needs to have other excellent characteristics in different pipeline systems.
For example, the high-pressure elbow in concrete transmission pipeline and mud transmission pipeline should not only bear high pipeline pressure, but also have good wear resistance.
In the chemical raw material transportation pipeline system, in addition to bearing high pipeline pressure, it also has excellent corrosion resistance and acid-base resistance.
Appliation
High pressure elbow is suitable for pipeline systems in petroleum, natural gas, chemical industry, hydropower, construction, boiler and other industries.

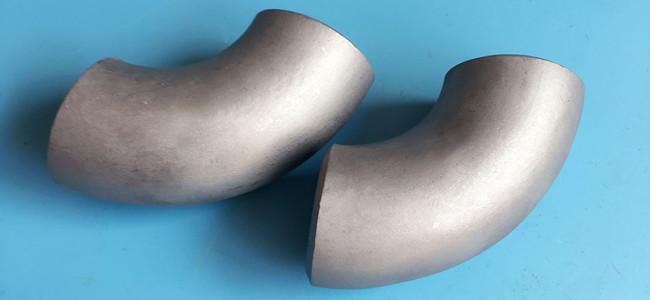

Product picture
