ANSI/ASTM/ISO Standards DN20-200 HDPE Pipe Fittings HDPE Tee
ANSI/ASTM/ISO Standards DN20-200 HDPE pipe fittings HDPE tee
Description
HDPE tee is environment-friendly, non-toxic, wear-resistant and strong toughness. The tee made of HDPE has good low temperature resistance, so that it can still maintain a certain mechanical strength at - 60 ℃.
HDPE tee is made of pure polyethylene, which has excellent low temperature resistance, good flexibility, impact resistance, wear resistance, smooth inner wall and improved medium mass flow rate.
Specification
Weight:0.35kg
Material::PE80 or PE100
Size:DN20~630(0.5"~24")
Standard:ANSI JIS DIN ASME
Pressure:1.25MPa-1.6MPa(PN12.5-PN16)
Technical data sheet
ANSI/ASTM/ISO Standards DN20-200 HDPE pipe fittings HDPE tee technical data sheet as below:
| Nominal IPS | A | B | C | D | E | Weight |
| Pipe Size | inches | inches | inches | inches | inches | lbs. |
| ¾'' | 6.38 | 3.19 | 0.10 | 1.05 | 2.14 | 0.13 |
| 1'' | 6.62 | 3.31 | 0.12 | 1.32 | 2.18 | 0.25 |
| 1¼'' | 6.97 | 3.48 | 0.15 | 1.66 | 2.15 | 0.35 |
| 1½'' | 7.84 | 3.92 | 0.17 | 1.90 | 2.37 | 0.50 |
| 2" | 8.66 | 4.33 | 0.22 | 2.38 | 2.48 | 0.82 |
| 3” | 11.81 | 5.91 | 0.32 | 3.50 | 3.54 | 2.18 |
| 4" | 13.78 | 6.89 | 0.41 | 4.50 | 3.94 | 4.02 |
| 6” | 18.11 | 9.06 | 0.60 | 6.63 | 4.72 | 10.91 |
| 8" | 23.62 | 11.81 | 0.79 | 8.63 | 5.71 | 24.61 |
| 10" | 27.56 | 13.78 | 0.98 | 10.75 | 6.30 | 42.60 |
| 12" | 31.57 | 15.97 | 1.16 | 12.75 | 7.52 | 67.85 |
Characteristic
HDPE tee is characterized by low temperature embrittlement and extremely low temperature. It can be safely used in the temperature range of - 60-60 ℃. During winter construction, due to the good impact resistance of the material, the brittle crack of pipe fittings will not occur.
It has good stress cracking resistance, low notch sensitivity, high shear strength and excellent scratch resistance. It has outstanding environmental stress cracking resistance.
It has good chemical corrosion resistance and can resist the corrosion of a variety of chemical media. The chemicals in the soil will not cause any degradation to the pipeline.
Application
HDPE tee has the comprehensive advantages of safety, sanitation and convenient construction. It has become an ideal pipe for urban water supply.
With unique corrosion resistance, it can be used for the transportation or discharge of various acids and salts, resulting in long service life, low cost and low maintenance cost.

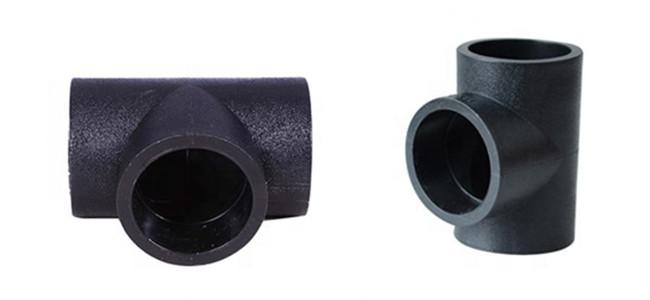

Product picture
