ASTM A194 SS 304 316 Stainless Steel Weld Nuts DIN 934 M1-M10
ASTM A194 SS 304 316 DIN 934 M1-M10 Stainless steel nuts
Description
Stainless steel nuts are fasteners that are screwed together with bolts or screws through the inner threads for fastening.
It is a part used to closely connect mechanical equipment. It is an essential fastener for all mechanical production and manufacturing.
There are many kinds of stainless steel nuts, including national standard, German standard, American Standard, Japanese standard and non-standard according to their different properties and corresponding national standard numbers.
Specification
Size: M3-M100; 1/4-4"
Material: stainless steel
Finish:Plain, Zinc Plated
Standard: GB, DIN, ISO, JIS
Nut Grade:4.8, 6.8, 8.8, 10.9, 12.9
Packing:Box, carton or plastic bag

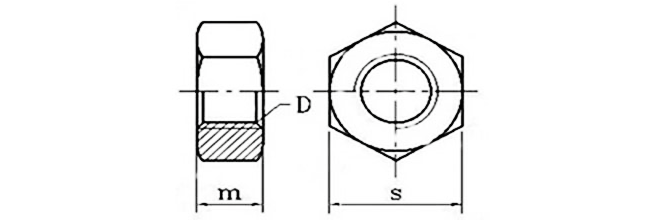

Technical data sheet
ASTM A194 SS 304 316 DIN 934 M1-M10 Stainless steel nuts technical data sheet as below:
| D | P | m | S | Wt | ||
| max | min | max | min | |||
| M 1 | 0.25 | 0.8 | 0.55 | 2.5 | 2.4 | 0.03 |
| M 2 | 0.4 | 1.6 | 1.35 | 4 | 3.82 | 0.142 |
| M 3 | 0.5 | 2.4 | 2.15 | 5.5 | 5.32 | 0.384 |
| M 4 | 0.7 | 3.2 | 2.9 | 7 | 6.78 | 0.81 |
| M 5 | 0.8 | 4 | 3.7 | 8 | 7.78 | 1.23 |
| M 6 | 1 | 5 | 4.7 | 10 | 9.78 | 2.5 |
| M 7 | 1 | 5.5 | 5.2 | 11 | 10.73 | 3.12 |
| M 8 | 1/1.25 | 6.5 | 6.14 | 13 | 12.73 | 5.2 |
| M 10 | 1/1.25/1.5 | 8 | 7.64 | 17 | 16.73 | 11.6 |
Characteristic
Stainless steel nuts are divided into type 1, type 2 and thin type according to the nominal thickness.
Type I hexagon nuts are the most widely used, and type 1 nuts are divided into three grades A, B and C.
Grade A and B nuts are applicable to machines, equipment and structures with small surface roughness and high precision requirements;
Grade C nuts are used on machines, equipment or structures with rough surfaces and low precision requirements;
Application
Stainless steel nuts can be used in construction machinery, wind power generation equipment, agricultural machinery, casting industry, drilling equipment;
It can also be used in shipbuilding industry, mining equipment, public facilities, rail transit, transmission system, metallurgical equipment, etc.
Product picture
