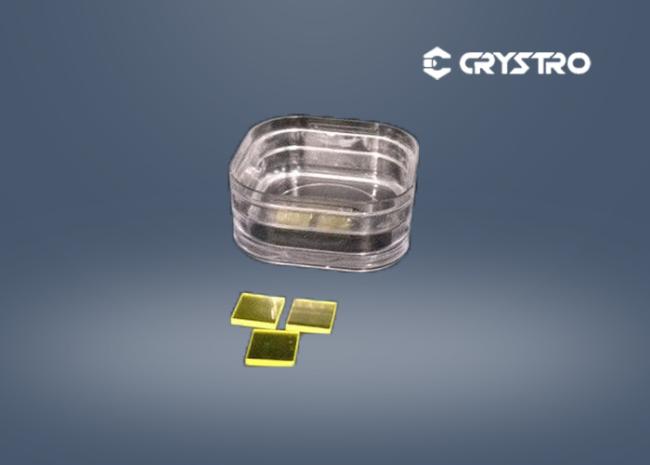

Ce Doped Gadolinium Aluminium Gallium Garnet Ce GAGG Scintillator Crystals
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
3-4 weeks
Brand:
Crystro
Product Description
Ce Doped Gadolinium Aluminium Gallium Garnet Ce GAGG Scintillator Crystals
Introduction :
Ce: GAGG is a relatively new single-crystal scintillator with many properties, such as high light yield, high density, good energy resolution, good emission peak matching with silicon sensor, and low intrinsic energy resolution. In addition, this material is no-hygroscopic and no self-radiative, which is widely used in PET, PEM, SPECT, X-ray and γ-ray detection, and so on.
Main Advantages:
- High output
- High energy resolution
- High density
- No self-radiation
- No moisture release
Main Application:
- Medical Imaging - PET, PEM, SPECT, and CT
- Specialist applications in high energy, nuclear, space, and medical physics
- Scanning electron microscopy (SEM)
Main Properties:
| Property | Value |
|---|---|
| Chemical Formula | Ce:Gd3Al2Ga3O12 |
| Atomic Number (Effective) | 54.4 |
| Growth Method | Czochralski |
| Density | 6.63g/cm3 |
| Mohs Hardness | 8 |
| Melting Point | 1850℃ |
| Thermal Expansion Coeff. | TBA x 10‾⁶ |
Crystro offers:
| Orientation Tolerance | ＜0.5° |
| Thickness/Diameter Tolerance | ±0.05mm |
| Parallel | 30" |
| Perpendicular | 15' |
| Surface Quality | 10/5 |
| Clear Aperture | ＞90% |
| Chamfer | ＜0.1*45° |
| Max Dimensions | MaxΦ 60mm |
