3*3*11mm Nd YAG Neodymium Yttrium Aluminum Garnet Laser Crystals
Price:
Negotiable
MOQ:
1
Delivery Time:
3-4 weeks
Brand:
Crystro
Product Description
3*3*11mm Nd YAG laser rod Neodymium Doped Yttrium Aluminum Garnet Laser Crystal
Neodymium Doped Yttrium Aluminum Garnet – Nd: YAG laser crystals remains to be the most popular material for solid-state laser manufacturing. Good fluorescence lifetime, thermal conductivity and robust nature make Nd: YAG laser crystals suitable for high power continuous wave, high-intensity Q-switched, and single-mode operation.
Main Properties:
| Chemical Formula | Nd: Y3Al5O12 |
| Lattic Parameter | a=12.01Å |
| Growth Method | Czochralski |
| Density | 4.5g/cm3 |
| Mohs Hardness | 8.5 |
| Melting Point | 1970℃ |
| Refractive Index |
1.82 |
| Extinction Ratio | 25 dB |
| Poisson Ratio | 0.25 |
Features :
- High gain coefficient
- Low lasing threshold
- Excellent optical, mechanical, and physical properties
- High slope efficiency
- Wide absorption bandwidth
Applications:
- Nd: YAG can produce blue laser with the frequency-doubling of 946nm
- Nd: YAG can be operated in a very high power laser up to kw level
- Nd: YAG can be Q-switched with Cr4+YAG directly
- Due to the cubic symmetry and high quality, Nd: YAG is easy to operate with TEM00 mode
Crystro can offer :
| Dimension | Diameter from 3 to 40mm |
| Nd Dopant level | From 0.3-1.5 atm% |
| Wavefront Distortion | 1/8 wave@632 |
| Diameter Tolerance | ±0.05mm |
| Length Tolerance | ±0.5mm |
| Chamfer | 0.10mm@45º |
| Flatness | <1/10 wave at 633nm |
| Parallelism | < 10 arc Seconds |
| Perpendicularity | < 15 arcmin |
| Surface Quality | 10/5 Scratch/Dig |
| Clear Aperture | >90% |
| Damage Threshold | >500MW/cm2 |

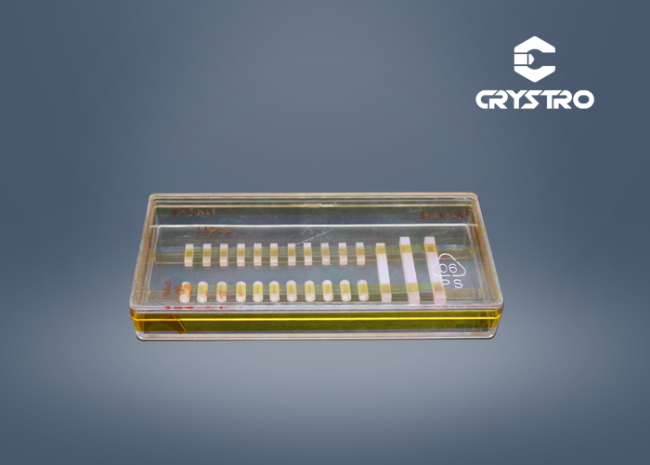

Product detail:
