Capacity 1000 - 1500kg 3 Wheel Electric Forklift Lifting Height 3000 - 4500mm
Capacity 1000-1500kg 3-Wheel Electric Forklift Lifting Height: 3000-4500mm
1. Specification

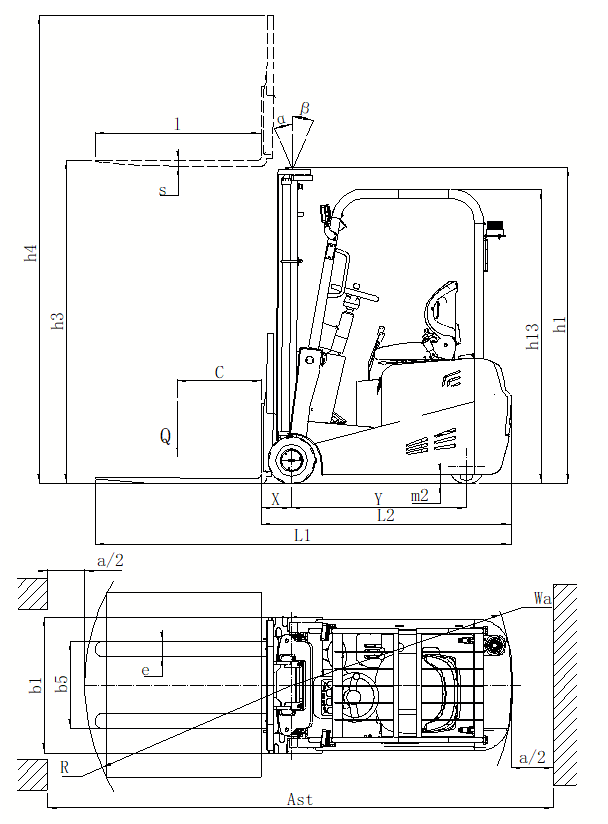

| 3-Wheel Electric forklift (HM CPD-A) | |||||
| Characteristics | 1.1 | Model No. | HM CPD10A | HM CPD15A | |
| 1.2 | Power type | Electric | Electric | ||
| 1.3 | Operation type | Seated Type | Seated Type | ||
| 1.4 | Load capacity | Q(kg) | 1000 | 1500 | |
| 1.5 | Load center | C(mm) | 500 | 500 | |
| 1.6 | Front overhang | X(mm) | 196 | 196 | |
| 1.7 | Wheelbase | Y(mm) | 1130 | 1130 | |
| Total weight | 2.1 | Total weight(including battery) | kg | 1700 | 2150 |
| Wheel, Chassis | 3.1 | Wheel type | Front Solid Tires/Rear PU Tires | ||
| 3.2 | Driving wheel | ∅×w(mm) | ∅230×75 | ∅230×75 | |
| 3.3 | Front wheel | ∅×w(mm) | ∅305×127 | ∅305×127 | |
| 3.4 | Front wheel Base | mm | 752 | 752 | |
| Dimension | 4.1 | Mast lowered height | h1(mm) | 2035 | 2035 |
| 4.2 | Free lift height | h2(mm) | 0 | 0 | |
| 4.3 | Lift height | h3(mm) | 3000 | 3000 | |
| 4.4 | Max. height when fork lifting | h4(mm) | 3918 | 3918 | |
| 4.5 | Height of overhead guards | h13(mm) | 1930 | 1930 | |
| 4.6 | Fork clearence when mast lowered | h(mm) | 35 | 35 | |
| 4.7 | Overall length(Without fork) | l2(mm) | 1587 | 1587 | |
| 4.8 | Overall width | b1(mm) | 850 | 850 | |
| 4.9 | Fork size | s/e/l(mm) | 35/100/1070 | 35/100/1070 | |
| 4.10 | Fork spread | b5(mm) | 210-566 | 210-566 | |
| 4.11 | Min ground clearence | m2(mm) | 35 | 35 | |
| 4.12 | Aisle width for pallet 1000*1200 crossaway | Ast(mm) | 2931 | 2931 | |
| 4.13 | Min. turning radius | Wa(mm) | 1425 | 1425 | |
| Performance | 5.1 | Max. travel speed(Unload/load) | km/h | 5.2/5 | 5.2/5 |
| 5.2 | Lifting speed (Unload/load) | m/s | 0.135/0.095 | 0.135/0.090 | |
| 5.3 | Descent speed(Unload/load) | m/s | 0.085/0.120 | 0.085/0.120 | |
| 5.4 |
Max. Climbing abilit(Unload/load) |
% | 8/6 | 8/6 | |
| 5.5 | Brake type | Hydraulic+Electromagnetic | |||
|
Motor, charger |
6.1 | Drive motor | kw | AC 1.5 | AC 1.5 |
| 6.2 | Lifting motor | kw | DC 3.0 | DC 3.0 | |
| 6.3 | Battery type | Lead Acid | Lead Acid | ||
| 6.4 | Battery capacity /Vol. | V/Ah | 24V/300Ah | 24V/300Ah | |
| 6.5 | Charger | V/A | 24V/40A | 24V/40A | |
| Other | 7.1 | Control model | AC | AC | |
2.Configuration
1. Small size, light weight, small turning radius, easy access to the elevator, suitable for floor and car operation, improving the trafficability and space utilization.
2. There is lifting over-cutting protection, and the hydraulic system is designed to be explosion-proof. Even if the oil pipe bursts, the gantry will not fall quickly, improving the safety.
3. The front wheel is a solid rubber tire with stronger grip and smooth operation.
4. The gantry is designed with the functions of buffering system and tilting forward and backward.
5. The double insurance method of electric control automatic and foot brake is adopted for the temporary parking of the forklift on the ramp to provide the maximum safety guarantee for the vehicle parking on the ramp.
6. American CURTIS control system has multiple automatic protection systems, providing a higher level of functional safety.
7. ZF gearbox in Germany, multi-function solution and flexible building module system, optimized halogen wheel meshing technology can reduce operating noise and provide customers with high-performance and efficient use experience.
8. EPS steering energy consumption is reduced by - 20%, operation is accurate, steering is light and flexible, driver fatigue is reduced, and productivity is greatly improved.
9. It is equipped with a full AC drive system, which has the characteristics of small size, light weight, high efficiency, and maintenance-free, which eliminates the trouble of replacing the carbon brush of the DC motor and requires no more maintenance.
3.PACKING&SHOPING
4.PRODUCTION SCENE
5.FAQ
Q1: Can Herrman provide customized products? OEM products or ODM products?
A1: Yes, Herrman can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q2: What's the specification of the chargers?
A2: Herrman have all kinds of the chargers and welcome the customers to custom-made.
Q3: How about the delivery time?
A3: Usually Herrman producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q4: Can we print the LOGO on products?
A4: Yes, the OEM is available with the permission of our customers.
Q5: What is your payment term?
A5: T/T,L/C or O/A if you want any other way, please contact us.And accepted Payment Type: L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Q6: What can I get from cooperating with Herrman?
A6: 1). Unique products, with customized service.
2). Timely production and delivery, time is money.
3). Market protection service, long term business strategy.
Q7:how can we guarantee quality?
A7:1).Always a pre-production sample before mass production.
2).Always final Inspection before shipment.
Q8: what services can we provide?
A8:1).Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
2).Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
