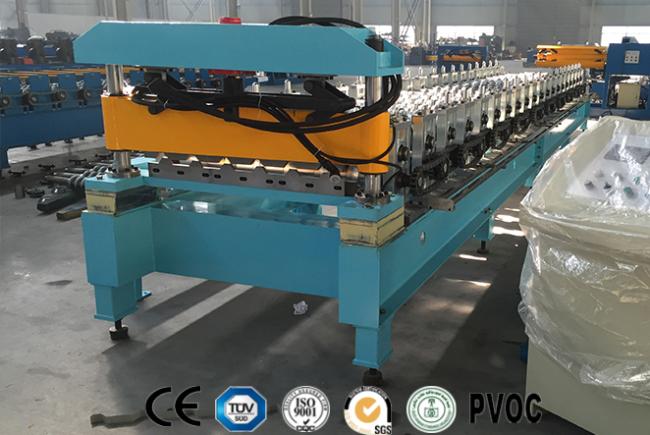

0.4mm Single Layer Roll Forming Machine , G550 Corrugated Sheet Roll Forming Machine
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
40-60 days
Brand:
HENGRUIYANG
Product Description
G550 Barrel Corrugation Machine, Horizontal Corrugation Machine for 0.4-0.7mm Corrugated Sheets
- Coil material thickness: 0.4-0.7mm
- Material: Galvanized color steel, G550mpa
- Roll forming machine: 4.2 meters length
- Rolling speed: 12-15m/min
- Roller stations: 10 stations
- Roller material: 45# forge steel, coated with chrome
- Shaft diameter: 100mm
- Transmission: By gears
- Material of chain: 45# forged steel with frequency quenching
- Material of cutting: Cr12Mov with quench HRC58-62
- Voltage: 220V, 50HZ,3 PH (depend on customer requirement
- High Quality
- Reasonable Price
- Good after Service
- 1 Year Warranty
- More Than 10 Years Experience
Work flow:
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000mm coil sheet |
| 2 | Thickness of feeding material | 0.3mm-0.8mm coil sheet |
| 3 | Roller station | 2-15 stations |
| 4 | Shaft Diameter | 75-95mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 2.5-8 ton |
| 9 | length | 5.5 m-11m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 8 Tons |
| 13 | Motor | 3kw-15kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6 inch-2 inch |
| 16 | Cutting system |
Hydraulic cutter |
| 5tons passive uncoiler | 1set |
| Pre-cutting equipment (Optional) | 1set |
| Film covering device (Optional) | 1set |
| Guiding Equipment | 1set |
| Roll Forming Equipment | 1set |
| Pressing equipment | 1set |
| Post Cut Equipment | 1set |
| Hydraulic Station | 1set |
| PLC Control Penal | 1set |
| Supporter Table |
2sets |
