5m/min Highway Guardrail Forming Machine , Galvanized Sheet Roll Forming Machine
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
40-60 days
Brand:
HENGRUIYANG
Product Description
galvanized roadway guardrail roll forming machine high quality roadway safety foming machinery
Product Description
Technical Parameter of European standard steel guardrail by highway guardrail roll forming machine produced
| Configurations | Uncoiler ,Feeding platform,Coil Strip Leveler ,Roll froming machine,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
| Control System | PLC Delta Inverter |
| Main Frame | 300mm H-Beam |
| Main Power | 30kw |
| Pump Power | 11kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 3-5/min |
| Roll Station | 16stands |
| Shafts Diameter | 80mm |
| Hydraulic Pressure | 10-12MPa |
| Effective width | 310mm |
| Feeding Thickness | 2-4mm |
| Backboard thickness | 20mm |
| Chain Size | 0.6mm |
| Cutter Materail | Cr12 |
| Roller Material | 45# forging steel |
| Overall Size | 16000×2400×1300mm |
| Total Weight | 20T |
| No. | Name | Qty | remark |
| 1 | Decoiler | 1 | |
| 2 | Leveling loading machine | 1 | |
| 3 | Punching machine1# | 1 | Punching end hole |
| 4 | Roll forming machine | 1 | |
| 5 | Cutting machine | 1 | |
| 6 | Output machine | 1 | |
| 7 | Hydraulic system | 2 | |
| 8 | PLC Control system |

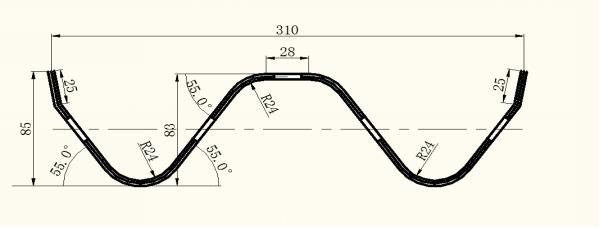

Profile drawing of European standard steel guardrail by highway guardrail roll forming machine produced
