10m/Min Downspout Pipe Roll Forming Machine 13 Stations
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
40-60 days
Brand:
HENGRUIYANG
Product Description
Custom Automatic Downpipe Elbow Machine Down Pipe Roll Forming Machine Galvanized cold steel sheet rain downspout pipe
1. Technical Parameter
|
Item NO. |
Description |
Offered Specification |
|
1.0 |
Roll forming machine | |
|
1.1 |
Rolling speed | 10-15m/min(not include cutting time) |
|
1.2 |
Rolling thickness | 0.3-0.6mm |
|
1.3 |
Raw material | Galvanized steel sheet |
|
1.4 |
dimension | 3500×1600×1500(mm) |
|
1.5 |
Effective width | 60mm |
| 1.6 | Roller stations |
13 stations One stage for embossing |
|
1.7 |
Roller material | 45#forge steel, coated with chrome |
|
1.8 |
Shaft diameter | Φ70mm ,material is 45# forge steel |
|
1.9 |
Transmission | By chain 1 inch |
|
1.10 |
Material of chain | 45# forged steel with frequency quenching, 12A |
|
1.11 |
Material of cutting | Cr12Mov with quench HRC58-62° |
|
1.12 |
Tolerance | 6m+-1.5mm |
|
1.13 |
Frame | H type steel |
2. Main Components
|
Serial No. |
Commodity & Description |
Quantity |
|
1 |
3T manual uncoiler | 1 set |
|
2 |
Infeed guiding | 1 set |
|
3 |
Main roll forming machine | 1 set |
|
4 |
straighten device | 1 set |
|
5 |
Hydraulic cutting equipment | 1 set |
|
6 |
Output table | 1 set |
|
7 |
Main drive | 1 set |
|
8 |
Hydraulic system | 1 set |
|
9 |
Controlling system (including cabinet) | 1 set |
|
10 |
Downpipe elbow forming machine | 1 set |
|
11 |
seaming machine | 1 set |
|
|
||
3. Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
4. Advantage for Roll Forming Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Afrer-sales service

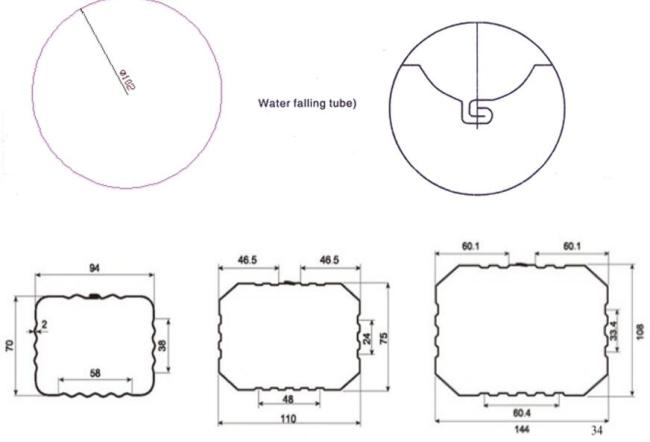

5. Profile of product
