1 - 4 mm PU Sandwich Panel Machine PU Coated Roofing Tile Forming Machine

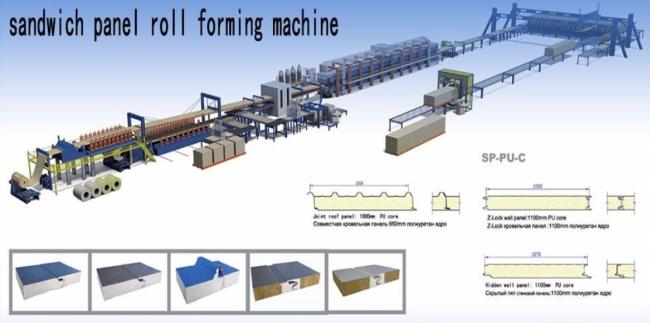

Sandwich Panel Roll Foriming Machine Line consists of:

Hydraulic Uncoiler----Color Steel Forming Machine------ Gluing System------ Main Composite Machine-------Automatic Tracking Cutting System -------- Elevator System------ Controlling System

Technical Parameters

Color Steel Forming Part

1). roller station: 14

2).material of roller:45#steel

diameter of roller:Φ70mm

3).rolling mould: two sets

blade: two sets

material of blade:Cr12

4).main motor power:4.0Kw(Tai Wan Delta frequency converter or as per customers requirement)

5).forming speed:0-8m/min

6) sprocket: P-25.4

7) thickness: less than 1mm

7) dimension:12*1.5*0.8m

Gluing System

1).glue pump power:1.5KW

2).two Sets

3).glue pump : 2Sets

Types of Sandwich panels	EPS sandwich panels	Foam and rockwool sandwich panels	Glass wool sandwich panels
Sample
The feeding width of plate	1.1000mm(for wall and bottom panel), 1200mm(form and rockwool)
Cover width of plate	980mm(Foam), 960mm (Rockwool)
Core thickness	50--250cm
Core material	Foam , rockwool and glass wool
Total power	32KW
Dimension	33*3*2.8 meters
Control system	PLC (Delta )control system full automatic control
Material of sandwich production machine	square tube:80*160*9mm
Rubber shaft	38pcs
One double layer roll forming machine	Steps of forming roller: 13/14steps Diameter of shaft: 70mm Thickness of Middle plate: 16mm Main body of machine: 350mm H steel Chains: 1 inch
