C80-300 C Purlin Roll Forming Machine , Quick Change Size Steel Roll Forming Machine
C80-300 Automatic C Purlin Quick Change Size Roll Forming Machine
Product Application
Automatic C Purlin Quick Change Size Roll Forming Machine(also called Automatic Change Size C Purlin Roll Forming Machine) from BMS MACHINERY is is a heavy duty forming line designed for the production of C purlins,which is most commonly used in Metal Building Systems.
SPECIFICATIONS FOR C80-300 Automatic C Purlin Quick Change Size Roll Forming Machine
|
DECOILER |
Manual type | no power,5Ton*500mm | coil inner–diameter=508mm； Load capacity= MAX.5.0Ton, Coiler Width= 500mm |
| Hydraulic type | 5Ton*600mm | Load capacity= MAX.5Ton; Hydraulic system expand coil inner hole, Pump motor: 3KW;Coil inner–diameter=470-510mm; Coil Width= MAX.600mm; Drag-off rotation type |
|
|
Main performance parameters of MAIN ROLL FORMING MILL |
Main motor capacity | kw/h | 18.5 |
| Forming station | with extra 5rollers (upper 3 and 2 down))for pre-leveling | 16 | |
| Forming speed(not incl.punching&cutting) | meter per minute | about 15-18 | |
|
Hydraulic Punching and Cutting system |
Hydraulic system | MPa | 16(max.) |
| Hydraulic drive | kw/h | 7.5 | |
| Cutting tool material | Tool steel | Cr12 |
Main Features
The advantages of Automatic C Purlin Quick Change Size Roll Forming Machine when comparing with Traditional C Purlin Machines are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Machine Parts
1.C purlin machine punching system
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes).
2. C purlin machine pre cutter
made by high quality mold steel Cr12 with heat treatment

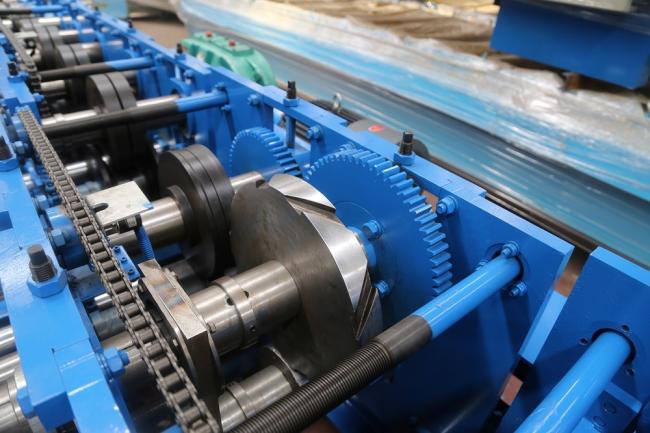

3.rollers
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.With black treatment or Hard-Chrome Coating for options.
4.PLC control system
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Encoder: KOYO/Omron (Japan brand)
