Galvanized Steel Z C Channel Roll Forming Machine High Speed 12m/Min
Fully Automatic Galvanized Steel CZ Purlin Cold Roll Forming Machine High Speed
1. Size of c z purlin
Used c z purlin cold roll forming machine is a machine can produce many sizes,Generally,there are three types of machine, c purlin machine, z purlin roll forming machine, C Z Section Steel Purlin Machine. The Web width can be 60-300mm Flange height can be 30-80mm, it is adjustable from min to max. The size of holes can be design by customers.

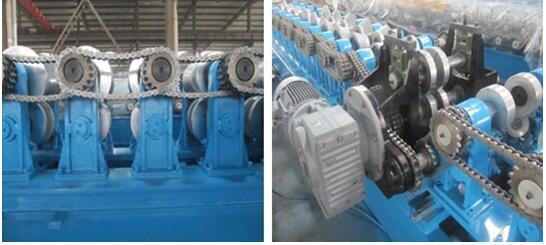

This C Z Used Roll Forming Machine consists of uncoiler,feeding and straightening,punching and cutting part, main roll forming part,cutting device and runout table.
Technical Parameter
| Item NO | Description |
Offered specification |
| 1.0 | Roll forming machine | |
| 1.1 | Rolling speed | 0-12m/min(not include cutting time) |
| 1.2 | Rolling thickness | 2-4.0mm |
| 1.3 | Raw material | Galvanized steel sheet |
| 1.6 | dimension | 6500×600×800(mm) |
| 1.7 | Effective width | 100-600mm |
| 1.8 | Roller stations | 16 stations |
| 1.9 | Roller material | 45# steel, coated with chrome, Quenching |
| 1.10 | Shaft diameter | Φ60mm ,material is 45# forge steel |
| 1.11 | Transmission | Gearbox |
| 1.12 | Material of chain | 45# forged steel with frequency quenching, 12A |
| 1.14 | Material of cutting | Cr12Mov with quench HRC58-62° |
| 1.15 | Cutting Tolerance | 6m+-1.5mm |
Main Components
| No | Name | quantity |
| 1 | 3 ton passive de-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | Control box | 1 unit |
| 4 | Hydraulic station | 1 unit |
| 5 | Cutting device | 1 unit |
| 6 | Out tables | 2 units |
Standard Profile and Drawing of product
Working Flow of Roll Forming Machine
feedingwithguide—Rollforming——Cutting—Products collecting
