20m/Min C&Z Purlin Roll Forming Machine , Z C Channel Making Machine

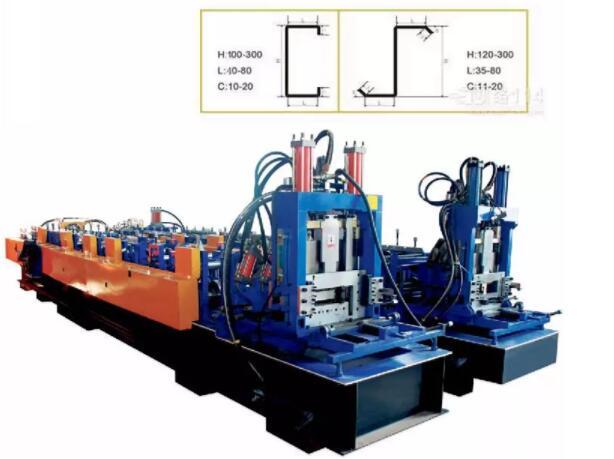

CZ purlin roll forming machine has now become an indispensable equipment for construction of I-beam and channel steel in tunnels, subway, hydropower stations, underground caverns, etc

Working Flow of Roll Forming Machine

Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting

CZ purlin roll forming machine features:

1. Upgraded version of CZ integrator, fast transformation; 1-2 minutes transformation of

2. Realization of Automatic Conversion of CZ Specification

3. Realize CZ automatic flip 180 degrees

CZ purlin roll forming machine technical parameters:

1. Spindle material: 45# steel quenching and tempering treatment, outer diameter Φ80mm

2, roll material:

1) Cr12 chrome steel quenching treatment HRC60-62 ° (optional)

2) GCR15 bearing steel quenching treatment HRC58-60°

3, the number of leveling rolls: 5 roll leveling

4, the number of main rolls: 15 rows (3 rows of leveling 12 rows of molding)

5, the main motor power: 11KW

6, rolling speed: 8-12 m / min

7. Cutting system: It adopts advanced hydraulic drive and automatically cuts the length after forming. Invariable, no waste, high safety factor. (The host stops cutting)

8. Punching: hole type drawing, can be adjusted freely before and after any setting

9, blade, punch material: Cr12, quenching treatment 60-62 °

10, electronic control system: the whole machine uses PLC, inverter control, rotation straightening

11, the size of the host: about 10.5M × 1.7M wide × 1.2M high

Machine List

CZ purlin roll forming machine charging:

1) Manual discharge rack, inner tension type, loading inner diameter 450mm--600mm, width ≤600mm, maximum loading weight 4000KG

2) Automatic inner tensioning and discharging rack width ≤600mm, Width <= 600mm, maximum loading weight: 7000KG

Hydraulic power: 3KW

Cylinder diameter: 120mm, working pressure: 10Mpa

CZ purlin roll forming machine detailed show:

Main Accessories:

(1) Main Forming Machine;

(2) 5Ton Manual Uncoiler;

(3) Hydraulic Punching Device;

(4) Hydraulic System;

(5) PLC Computer Controlling System With Touch Screen; (Brand:Delta or Schneider,or

Siemens,choose any one)

(6) Hydraulic Forming Cutter;

(7) Tools;

(8) Operation Manual;

Packaging Details:

1. Machine is fixed in the container with steel ropes so that the machine is kept from being collided
2. Nude in the container or as your requires
