30m/Min C And Z Purlin Roll Forming Machine 380V 50HZ 3 Phase

Fully Automatic Changing Sizes CZ Purlin Roll Forming Machineppl

ication

They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, garden, exhibition center, garage, warehouse, cinema, theatre, garden and so on.​

Quick C to Z interchange:

The rollers for C & Z are changed very quickly without dismantling any parts, The forming tooling is simply unclamped (two bolts), rotated through 180 degrees, and re-tightened. No tooling or spacers are removed or changed. Quick, Easy, Simple.

Size change:

The form tooling is unclamped, slid into the correct position by PLC control. No special tools, no spacer changed. Infinite sizes are possible.
Only input data in the touch screen can adjust any size automatically, by motor driving stations moving accurately on linear guide rail with encoder.

Main Components of CZ Purlin Roll Forming Machine

 Features CZ Purlin Roll Forming Machine

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel

2. Structure and process as a whole after welding. It has the ability of strong loading and stable operation when

3. All the components of the machine are from brand-famous enterprises so that they ensure the machine normal function very effectively.

4. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.

5. It is very easy to install the equipment and suitable for producing in the factory.

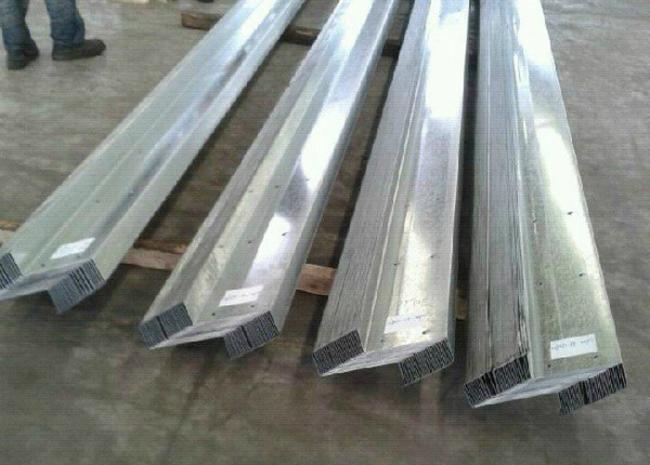

Sample

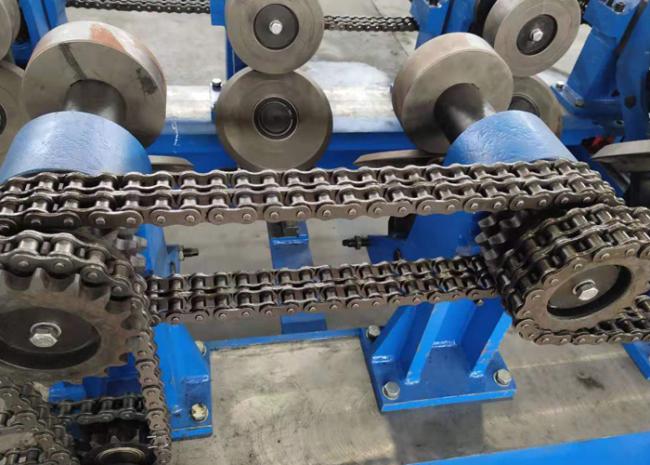

Accessories details
