8M/Min CZ Shape Purlin Roll Former Interchangeable
8-12 m/min CZ Shapes Interchangeable Purlin Roll Forming Machine with PLC
Product description

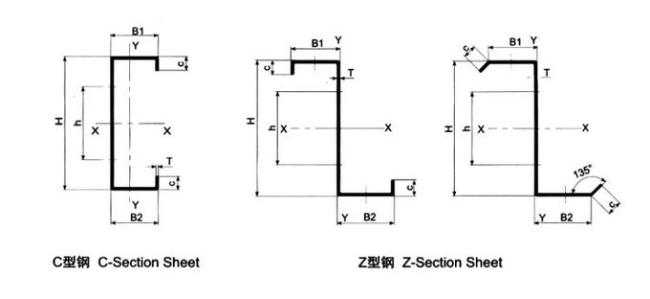

The CZ Purlin Roll Forming Machine is used to produce both C and Z purline on one machine. Adjust from one shape to the other, one operator only needs 1 minute, and the size adjustment can be fully automatic
BLO can also customize the machine according to your requirements.
Main features of CZ Purlin Roll Forming Machine
1. the structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel
structure and process as a whole after welding. It has the ability of strong loading and stable operation when
running the machine.
2．All the components of the machine are from brand-famous enterprises so that they ensure the machine normal function very effectively.
3. we adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
4. it is very easy to install the equipment and suitable for producing in the factory.
5. the machine has features of low noise and high efficiency.
Technical Parameter of CZ Purlin Roll Forming Machine
| Article No. | Item Name | Specification |
| 1 | Effective width | 27 mm |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 8-12 stations |
| 4 | Shaft Diameter | 55 mm |
| 5 | Productivity | 8-12 m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 3.5-5 tons |
| 9 | length | 4.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 3-5.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6-2 inch |
| 16 | Cutting system | Hydraulic cutter |
| No. | Mchine composition | Quantity |
| 1 | Hydraulic decoiler 3T | 1 set |
| 2 | Cold rolling mills | 1 set |
| 3 | Hydraulic cutting device | 1 set |
| 4 | PLC computer | 1 set |
| 5 | Electric cabinet | 1 set |
| 6 | Exit table | 1 set |
Application

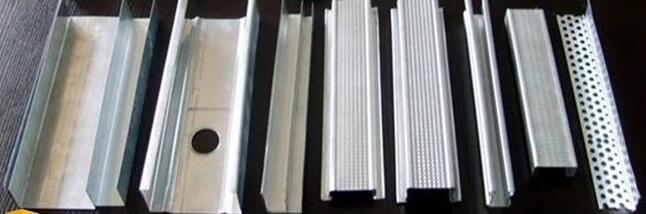

They are widely used as a supporter of roof and wall in large-scale and mid-scale construction, such as factory, garden, exhibition center, garage, warehouse, cinema, theatre, garden and so on.
Detailed machine parts:
1 .We can make and design all kinds of roll forming machine according to customer's requests.
2 .This is a very perfect and durable equipment.
3 .This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4 .We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5 . Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.Welcome to contact us with any details. We are glad to answer your questions.
