G550 Stud And Track Roll Forming Machine , 20m/Min Wall Angle Roll Forming Machine
Price:
Negotiation
MOQ:
1 sets
Delivery Time:
40 days after payment
Brand:
HENGRUIYANG
Product Description
Wall Angle Cold Roll Forming Equipment PLC Control 380v 3 Phase 50hz
Product Descriptions
Wall Angle is the perimeter member for ceiling metal framework. This is fixed to the wall.
The two sides of the V-shaped groove are symmetrically and orderly arranged with an anchor-like hook. The hook can be formed into an imperial or metric combination with the auxiliary keel. The main keel and the auxiliary keel are connected with an eight-centimeter screw to make it stronger and durable.
Product Parameters
| Items | Specifications |
| Material Thickness | 0.4-0.8 mm galvanized sheet G550 |
| Rolling Speed | About 20 m/min line speed |
| Roller Stations | About 9 stations |
| Roller Material | 45# Steel with quenching 60mm shaft |
| Maim Motor Power | 5.5 kw |
| hydraulic station Power | 4 kw |
| Material Of Cutting | CR12 with quench treatment |
| Tolerance | +-1.5mm |
| Electric Source | 380V, 50HZ,3 phase |
| Also can satisfy Customer’s require | |
| Control System | PLC control system |
| Weight | About 2.5 tons |
| Way Of Drive | 1 inch single chain |
| Size of machine | Length 4500mm* Width 500mm* Height 800m |
Main Components
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Punching part | set | 1 |
| 3 | Main forming machine | set | 1 |
| 4 | PLC control system | set | 1 |
| 5 | Hydraulic pump station | set | 1 |
| 6 | Post cut | set | 1 |
| 7 | Electric motor | set | 1 |
| 8 | Output table | set | 1 |

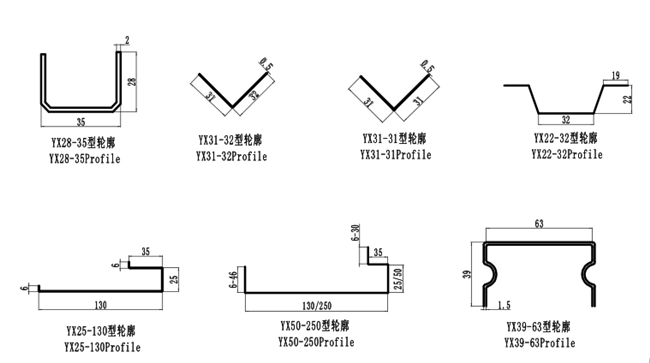

Version to design

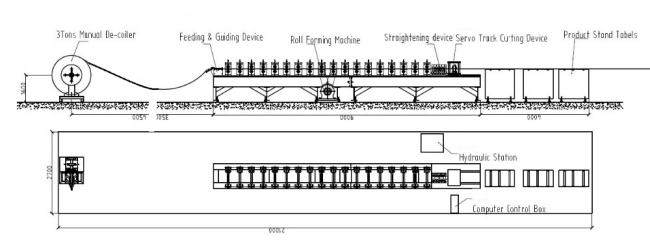

Working Flow
Decoiler--Guiding-- Roll-forming--Hydraulic cutting -- Output table
