Double Three Raw Furring Channel Roll Forming Machine 15m/min
Double Raw Or Three Raw Furring Channel Roll Forming Machine High Efficiency
Product Descriptions

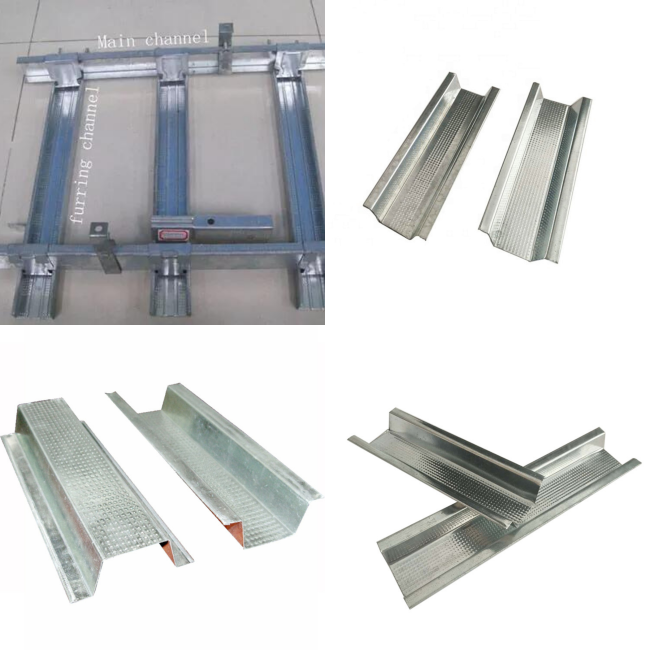

Furring channel is a main material made of light steel and used for ceilings of ceilings. It is connected to the floor by screws and is used to fix ceilings or objects.
It is used to decorate the exterior wall and the roof of the building, which is made of plaster board, decorative plasterboard, etc.
It is suitable for the decoration of the roof of various buildings, the inner and outer wall of the building and the basic material of the scaffold type ceiling.
Main Components
| No. | Name | Qty |
| 1 | Manual uncoiler | 1 |
| 2 | Punching machine | 1 |
| 3 | Main roll forming machine | 1 |
| 4 | PLC Control box | 1 |
| 5 | Hydraulic station | 1 |
| 6 | Output table | 2 |
Version to design
Working Flow
Uncoiler --Roll-forming -- Hydraulic cutting -- Output table
Product Parameters
1. Running material: Galvanized steel Thickness – 0.27-1mm
2. Forming speed: 12-15m/min
3. Forming steps: 13 steps
4. Roller material: Fine steel precision work processing of Gcr15,Roller datum roller diameter φ120
5. Material of principal axis: Fine steel modulation processing of 45
(axis diameter:φ60)
6. Sprocket wheel: 45 steel high-frequencies quench; distance 25.4.
7. Overall Dimension of the main forming machine: 6000mmX700mmX900mm
Pictures
