50HZ EPS Sandwich Panel Making Machine Continuous Cold Roll Forming
EPS Sandwich Panel Making Machine Continuous Cold Roll Forming 50HZ
Product Description
Technical specification
1. Technique parameters of the processing line
(1) Coil material: EPS, rock wool, glass silk floss and so on
(2) Thickness of the plate: 0.3-0.8mm
(3) Core thickness: 20-300mm
(4) Production capacity (according to your glue):
4-4.5m/min (the fastest), 2-2.5m/min(the slowest)
(5) Total power: about 30KW
(6) Weight: 25ton
(7) PLC control systerm, easy to operate, high precision and work stably.
(8) Dimensions of whole production line:
About Length35000mm × Width2500mm × Height2600mm
Components of line:
| No. | Name | Unit | Qty |
| 1 | Composite Decoiler | set | 1 |
| 2 | Main Machine For Roll Forming | set | 1 |
| 3 | Main Machine For Compositing | set | 1 |
| 4 | Control System(PLC) | set | 1 |
| 5 | Cutting System | set | 1 |
| 6 | Runout Table | set | 1 |

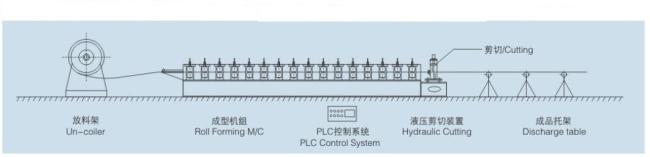

Working Flow:
manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table
Our Services and Terms
Terms of Payment: 40% of the total contract value paid by T/T as down payment, the rest 60% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 60 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 60USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee
