50KW Perforated Cable Tray Roll Forming Machine 8m/Min

Perforated Cable Tray Roll Forming Machine

Main features

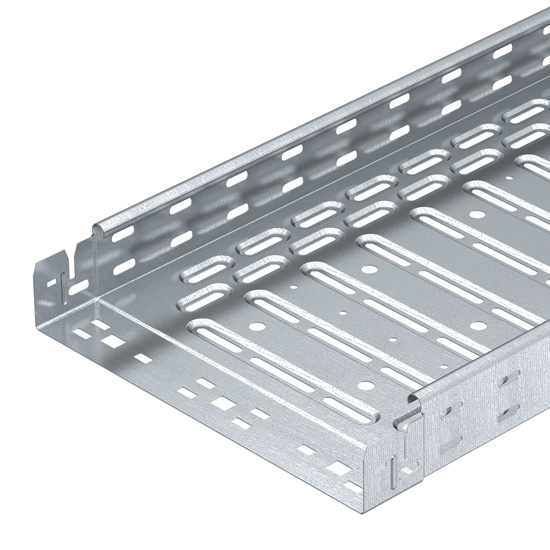

Our cable tray roll forming machine is capable of making different sizes of cable trays through automatic adjust and replacing punching mold. The cable trays produced by this roll forming production line are extensively used in petroleum, chemical, electric power, light industry, television, and telecommunications.

In order to improve punching precision, we adopt servo feeding technology to make sure that the punching accuracy can reach more or less than 0.15 mm.In consideration of decreasing sheet distortion caused by rear cutting, cable tray roll forming machine is designed with front cutting device. This roll forming production line is also equipped with a proper guiding device to ensure that the front-cutting sheet can be fed into the roll former correctly.

Working flow

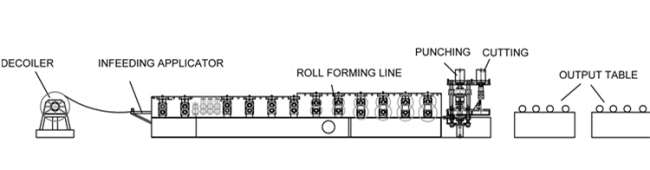

Decoiler——Feeding——Punching&Cutting——Roll forming——Output table

Technical parameter

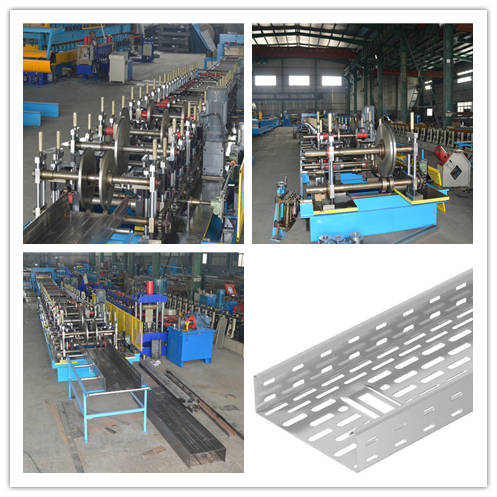

Machine picture

Machine components

1. (Hydraulic) De-coiler------------------------------1set

2. Leveler------------------------------------------------1set

3. Punching machine----------------------------------1set

4. Cutting device ---------------------------------------1set

5. Forming machine------------------------------------1set

6. PLC control box -------------------------------------1set

7. Hydraulic pump station-----------------------------1set

8. Production support table---------------------------1set

Profile drawing
