15m/Min Cable Tray Forming Machine , Cable Ladder Roll Forming Machine
Cable Ladder roll forming machine
Main features
The cable ladder manufacturing machine especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe. For DingBo cable tray roll forming machine is a kind of machine for making cable tray by roll forming principle.
Working flow
Uncoiler--Feeeding--Leveling—Punching—Roll forming--Hydraulic cutting----Output table
Technical parameters
1. material width: 200-800mm
2. material thickness: 0.8-2.0mm
3. uncoiler: 6 tons manual
4. rolling speed: 10-15m/min
5. roller stations: 24 stations
6. roller material: GCr15 quench treatment
7. main motor power : 22Kw
8. cutting material: Cr15 with quench treatment
9. hydraulic cutting power: 7.5Kw
10. power supply: 380V, 50Hz, 3 Phase
11. control system: PLC
Machine components
| Name | Quantity |
| Manual decoiler | 1 set |
| Main forming machine | 1 set |
| PLC control system | 1 set |
| Hydraulic pump station | 1 set |
| Post cut | 1 set |
| Electric motor | 1 set |
| Output table | 1 set |

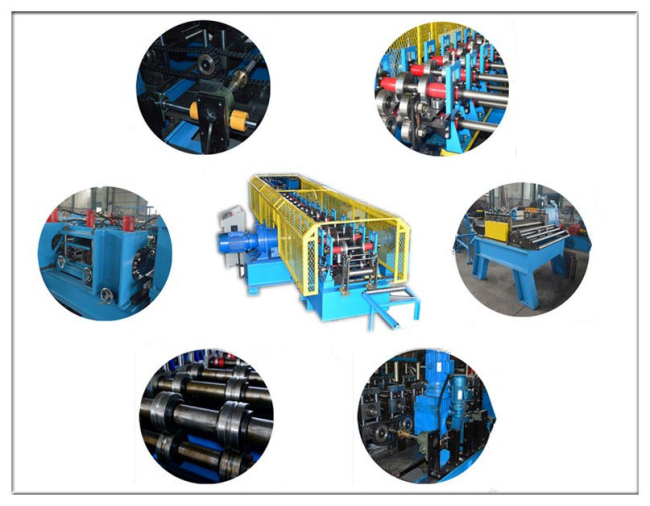

Machine picture

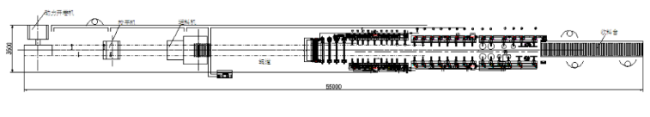

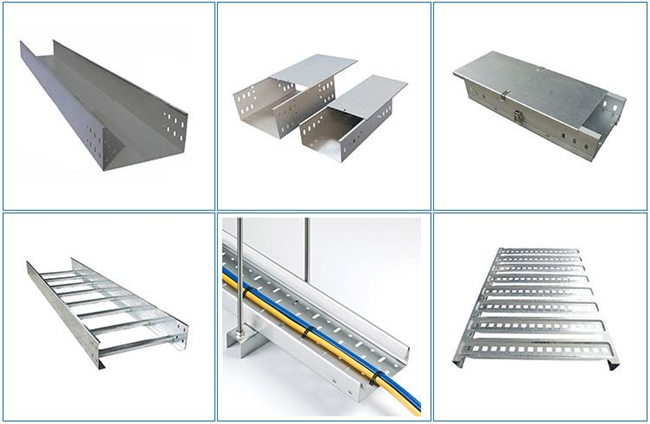

Profile drawing
