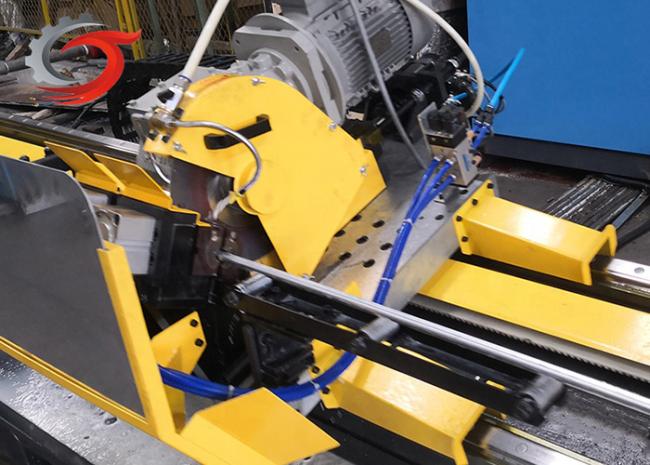

ERW Cold Saw Pipe Cutting Machine
CNC ERW Welded Pipe Production Line High Speed Cold Cut Saw Tube Cut Fly Saw
Introduction
The machines are lightweight and driven by pneumatic, electric or hydraulic motors and can be controlled by a single operator. Bevel cutters feature high metal removal rates, are easy to operate, and are robust and compact.
| material | Q195 Q235 SPCC | |
|
Cutting range |
Round tube:MAX114mm | thick:0.5～4.0mm |
| Square tube:MAX90×90mm | thick:0.5～4.0mm | |
| Rectangular tube:MAX 50×90mm | thick:0.5～4.0mm | |
| Production speed | 80m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Feeding direction | ||
| Operation height | 800mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply |
AC380V,3PH,50HZ |
|
| Mechanical length | 5420*1480*1380mm(as per final drawing) | |
|
Motor list |
Drive:18.5KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 22KW | PHASE servo motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Clamp | hydraulic pressure | |
| Clamp block model | tape shape to avoid scratching the steel pipe | |
| Oil supply system | Auto oil filling | |
| Saw blade | High speed steel | |
| main shaft gearbox | Special made | |
| Gear rack | KH from Chinese Taiwan | |
| Cable protection | Drag chain | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. Smooth operation and high cutting precision
2. Noise reduction and safety
3. Superior cutting edge, no burr, cost saving
4. Low noise, no burr for cutting, safer operator, saving cost and material.
5. Automatic, intelligent and pollution-free operation
6. New function: remote control system to solve problems in time.
Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
