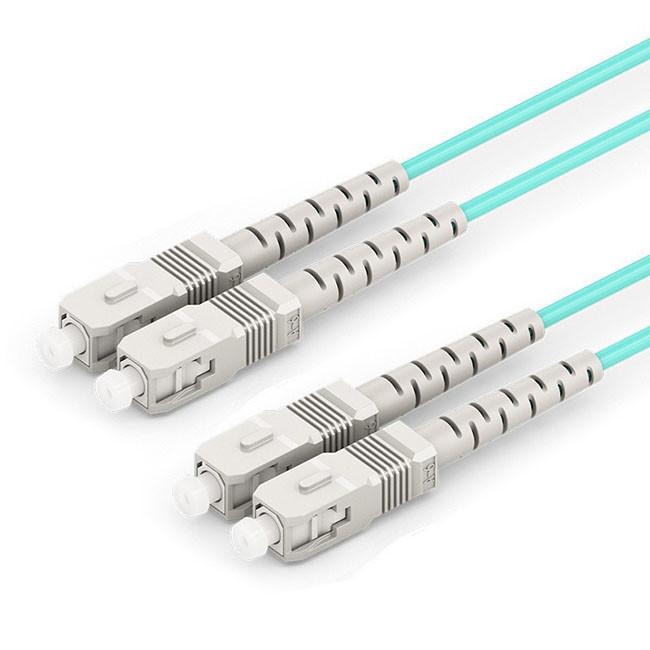

Fiber Optic Patch Cord sc OFNR SC UPC-SC UPC OM3 Duplex 3.0mm 2.0mm LSZH
| Specification | Single Mode | Multi Mode | ||
| Parameter | PC | UPC | APC | UPC |
| Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Insertion Loss | ≤0.3dB | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥40dB | ≥50dB | ≥60dB | ≥30dB |
| Fiber Type | G652D,G655, G657A1, G657A2, G657B3 | OM1/OM2/OM3/OM4/OM5 | ||
| Fiber Brand | YOFC, Corninng | |||
| Exchange | ≤0.2dB | |||
| Repeartability | ≤0.2dB | |||
| Durability | > 1000 times | |||
| Connectors Type | SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5 | |||
| Fiber Count | 4, 6, 8, 10, 12, 24, 36, 48, 72, 96, 144 Cores | |||
| Sheath Material | PVC, LSZH, OFNR, OFNP | |||
| Cable Diameter | φ3.0mm, φ2.0mm, φ0.9mm or Specify | |||
| Length (M) | Customized | |||
| Operating Temperature | -40℃~+60℃ | |||
| Storage Temperature | -45℃~+85℃ | |||
| Compliant Standards | CE,RoHS, REACH and IEC | |||
| item | value |
| Model Number | Patchcord |
| Type | Fiber optic patch cord |
| Place of Origin | China |
| Certification | RoHS, ce, ISO9001, ANATEL |
| Product name | Fiber Optic Patchcord |
| Application | FTTH FTTxFTTB Network |
| Fiber Type | G657A |
| Dimensions | 3.0mm |
| Color | Yellow |
| Length | Customized Lengths(1m/2m/3m) |
| Certification | CE RoHS ISO9001 |
| Connector Type | SC UPC / LC APC |
| Return Loss | 60dB |
| Insertion Loss | 0.2dB |
- Low insertion loss, high return loss
- Good in repeatability and exchangeability
- High temperature stability
- Excellent endface geometry
- ISO9001:2008, ROHS
- Various fiber cable length, jacket color, connector type and label, etc.
- All products undergo 100% strict quality inspection before shipment.
Applications
- Telecommunication
- CATV, FTTH, LAN
- Fiber oiptic sensors
- Optical transmission system
- Test equipment
The reason why Choose us:
1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
FAQ
1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
