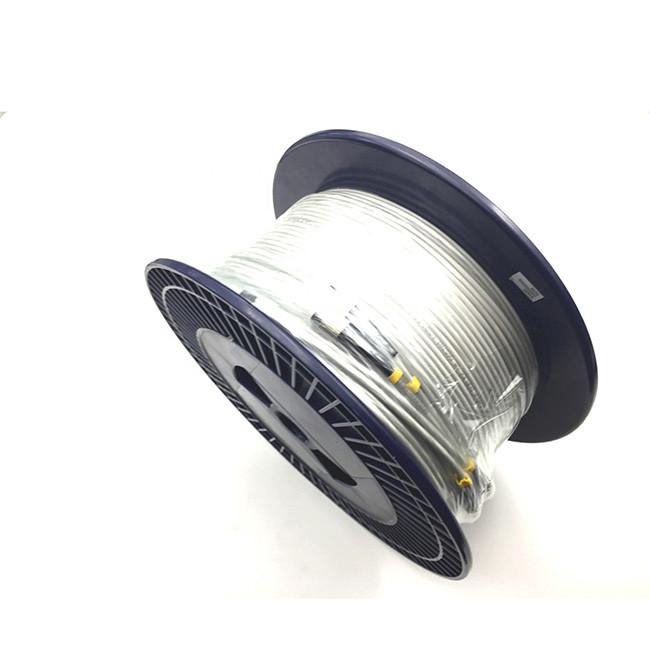

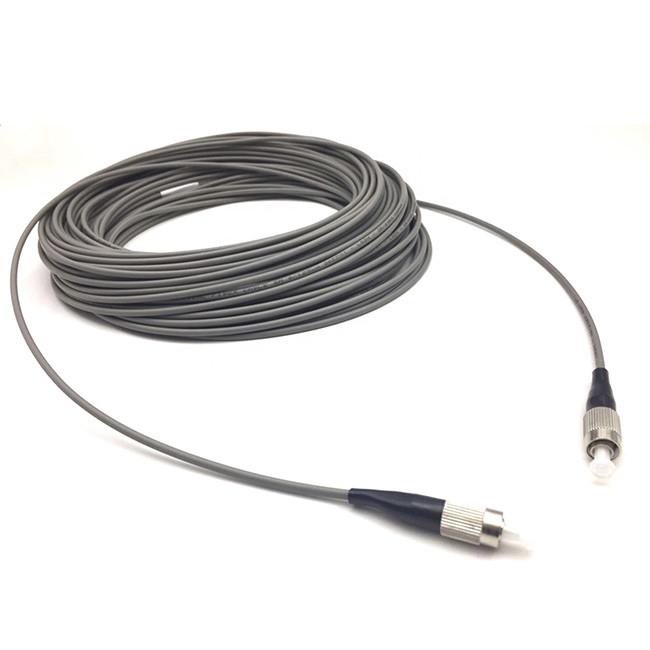

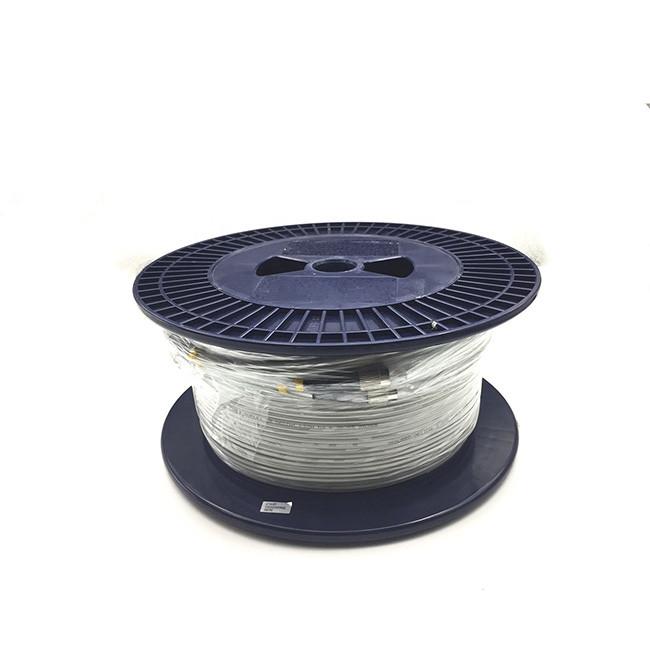

Simplex 3.0mm LSZH FC PC - FC PC Singlemode G657A1 Armored Fiber Patch Cord
| Parameters | Standard Fiber Cable Assemblies | |
| Fiber Type | SM(G.652/G.657A) | MM(OM1/OM2/OM3) |
| Jacket Materials | LSZH/OFNR/PVC | |
| Connector Type | SC/LC/ST/LC/MU/MTRJ/MPO/E2000 | |
| Ferrule Materials | Ceramic | |
| Testing Wavelengths | 1310±30/1550±30nm | 850±30/1300±30nm |
| Insertion Losss(dB) TIA/EIA-455-107 |
≤ 0.3dB (PC/UPC/APC) |
≤ 0.3dB (PC/UPC) |
| Return Loss(dB) TIA/EIA-455-107 |
≥45dB(PC/UPC) ≥55dB(APC) |
≥35dB(PC/UPC) |
| Exchangeability | ≤ 0.2dB | |
| Cable Assemblies | Pigtail/Simplex/Duplex/Fan-out Patchcord | |
| Operating Temperature (° C) | -10~ + 70 | |
| Storage Temperature (° C) | -40 ~ +85 | |
| Package | 1unit/bag | |
| *All values specified are with connectors. | ||
|
Configuration
|
Fiber type
|
Length
|
Model
|
|
Standard, coupler
|
single-mode
|
150m
|
OS2-150m, 9/125um
|
|
Standard, coupler
|
single-mode
|
300m
|
OS2-300m, 9/125um
|
|
Standard, coupler
|
single-mode
|
500m
|
OS2-500m, 9/125um
|
|
Standard, coupler
|
single-mode
|
1km
|
OS2-1km, 9/125um
|
|
Standard, coupler
|
multi-mode
|
500m
|
OM1-500M, 62.5/125um
|
|
Standard, coupler
|
multi-mode
|
1km
|
OM1-1KM, 62.5/125um
|
|
Standard, coupler
|
multi-mode
|
500m
|
OM2-500M, 50/125um
|
|
Standard, coupler
|
multi-mode
|
1km
|
OM2-1KM, 50/125um
|
|
Standard, coupler
|
multi-mode
|
100m
|
OM3-100M, 50/125um
|
|
Standard, coupler
|
multi-mode
|
300m
|
OM3-300M, 50/125um
|
- Low insertion loss, high return loss
- Small, light, high dense connection
- Standard exact plastic material
- High credibility and stability
- Good in repeatability and exchangeability
- Telecommunication networks
- CATV
- LAN and WAN
- FTTX
- Broadband network
- Local Area Network (LAN)
- Fiber to the home (FTTH)
- Optical patch panels
- Testing Instruments
The reason why Choose us:
1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
