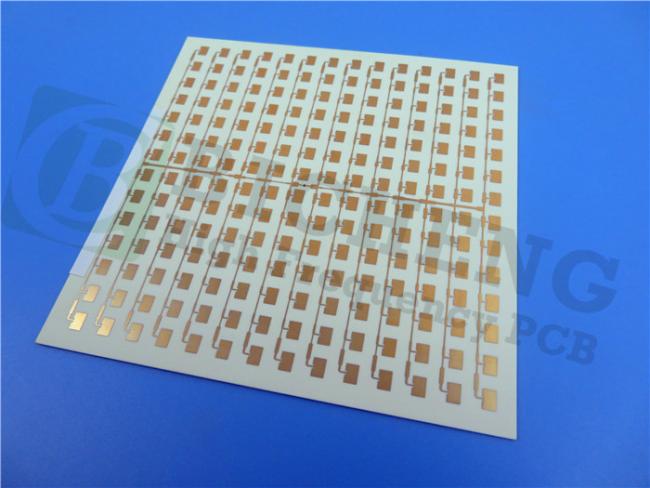

Rogers RO4360G2 32mil Double Sided High Frequency PCB With Immersion Gold for Base Station Power
Amplifiers
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

RO4360G2 laminates of Rogers Corporation are 6.15 Dk, low loss, glass-reinforced, hydrocarbon ceramic-filled thermoset
materials that provide the ideal balance of performance and processing ease. RO4360G2 laminates extend Rogers' portfolio
of high performance materials by providing customers with a product that is lead-free process capable and offers better rigidity
for improved processability in multi-layer board constructions, while reducing material and fabrication costs.

RO4360G2 laminates process similar to FR-4 and are automated assembly compatible. They have a low Z-axis CTE for design
flexibility and have the same high Tg as all of the RO4000 product line. RO4360G2 laminates can be paired with RO4450F prepreg
and lower-Dk RO4000 laminate in multi-layer designs.

RO4360G2 laminates, with a Dk of 6.15 (Design Dk 6.4), allow designers to reduce circuit dimensions in applications where
size and cost are critical. They are the best value choice for engineers working on designs including power amplifiers, patch
antennas, ground-based radar, and other general RF applications.


Features and benefits:
1. Thermoset resin system specially formulated to meet 6.15 Dk
1). Ease of fabrication / processes similar to FR-4
2). Material repeatability
3). Low loss
4). High thermal conductivity
5). Lower total PCB cost solution than competing PTFE products,

2. Low Z-axis CTE / High Tg
1). Design flexibility
2). Plated through-hole reliability
3). Automated assembly compatible

3. Environmentally friendly
1.) Lead free process compatible

4. Regional finished goods inventory
1). Short lead times / quick inventory turns
2). Efficient supply chain


Some Typical Applications:
1. Base Station Power Amplifiers
2. Small Cell Transceivers
3. Patch antennas
4. Ground-based Radar

PCB Capability




Data Sheet of RO4360G2
