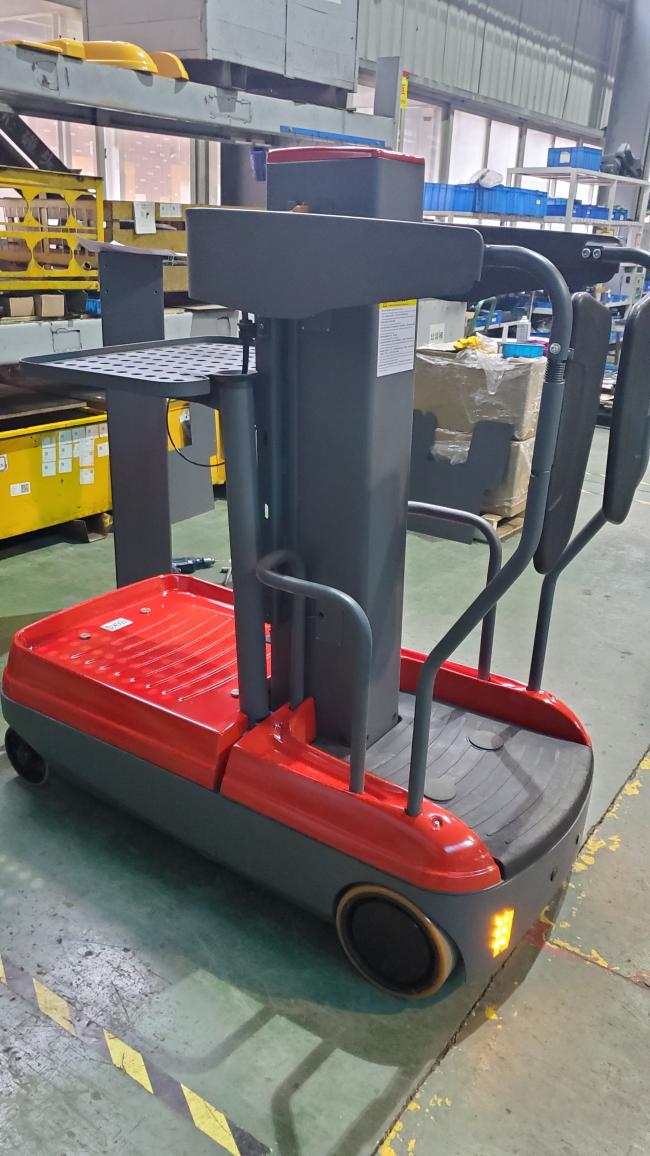

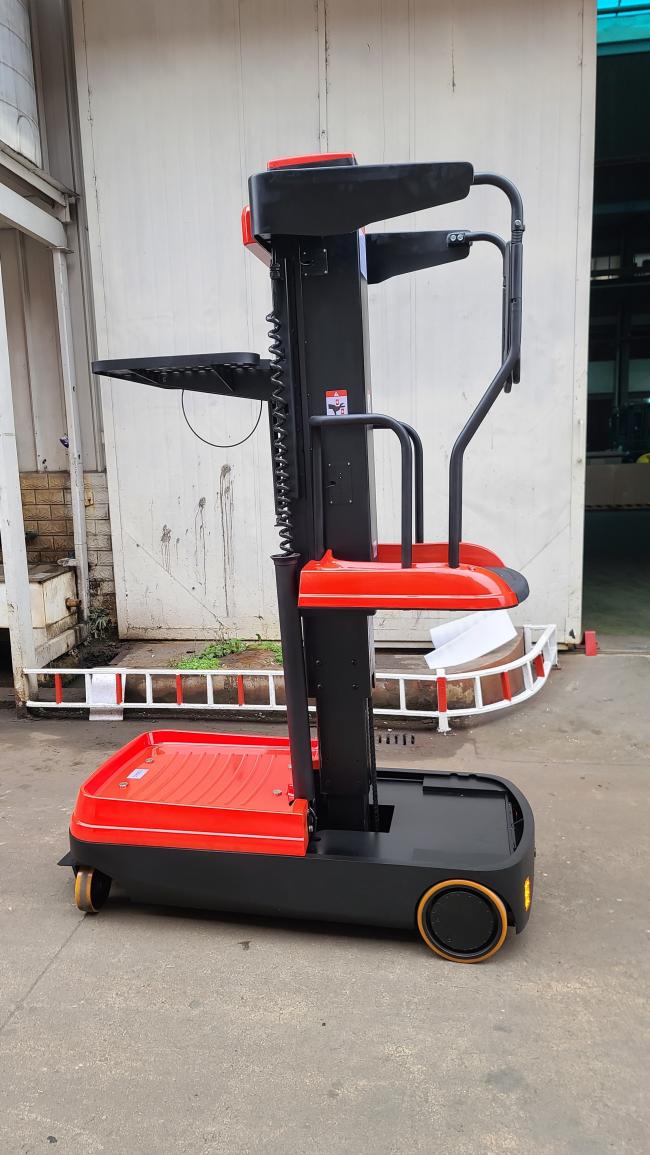

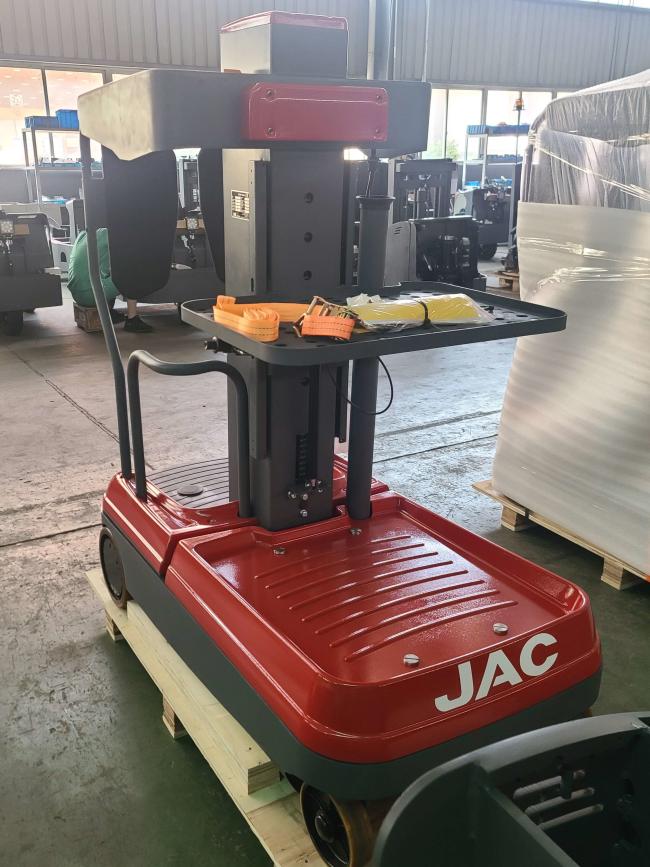

Electric Order Warehouse Picker Truck Machine 90kg/150kg/240kg
Price:
Negotiable
MOQ:
1
Delivery Time:
15 work days
Brand:
JAC
Product Description
| Model | OPSM-1 | |
| Power | Electric(Storge battery) | |
| Operation type | Stand driving | |
| Height, lowered | mm | 1590 |
| Overall length | mm | 1500 |
| Overall width | mm | 750 |
| Max. lifting height,platform | mm | 2995 |
| Max. reachable height | mm | ≈5000 |
| Turning radius | mm | 1300 |
| Size of loading tray | mm | 700×500 |
| Load capacity of loading tray | (kg) | 90 |
| Load capacity of loading dock | (kg) | 150 |
| Tyre size, front | mm | Φ180 |
| Tyre size, rear | mm | Φ250 |
| Wheels, number front rear(x=driven wheels) | 2-2x | |
| Wheelbase ground distance | m2(mm) | 65 |
| Travel speed, laden/unladen | Kg/h | 4.5 |
| Battery voltage, nominal capacity K20 | V/Ah | 24/105(250) |
| Battery dimensions | mm | 260x168x212 |
| Battery weight | Kg | 61 |
| Service weight | Kg | 750 |
