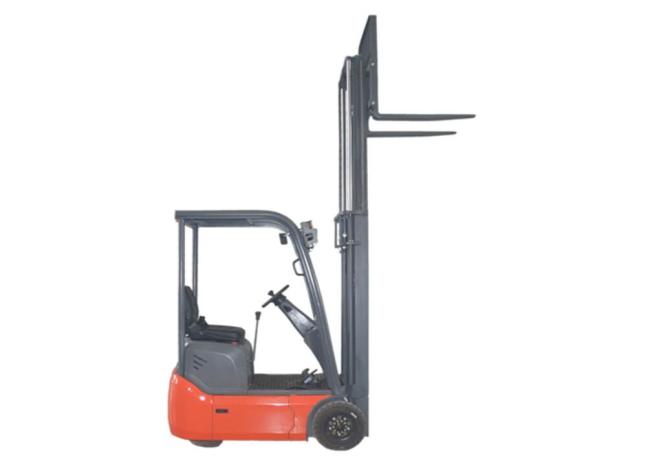

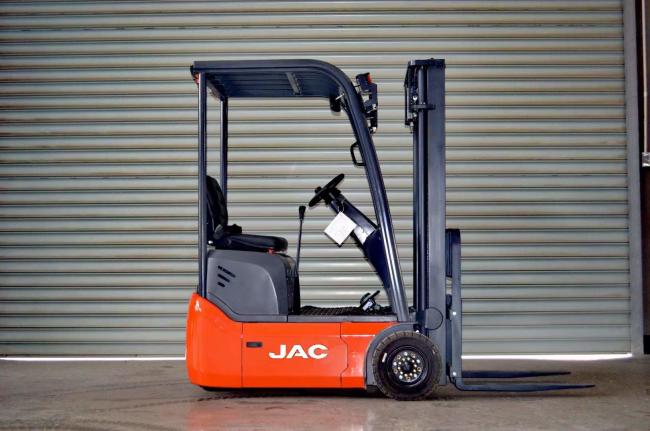

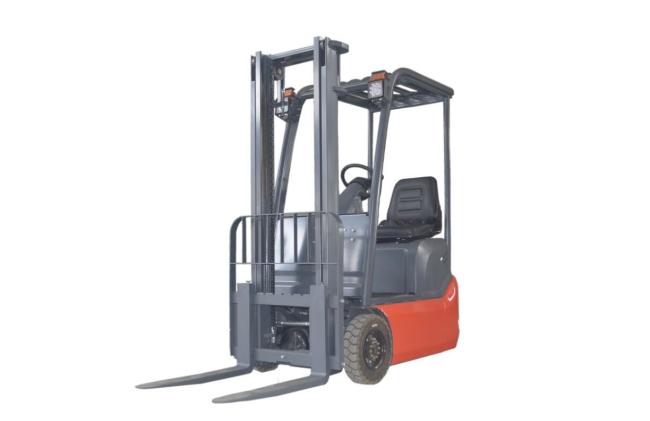

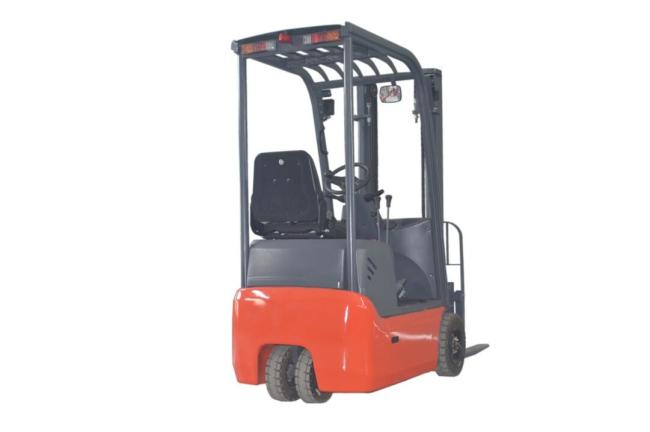

Mini Hydraulic Three Wheeled Electric Forklift Truck 1200kg CPD12FD
Price:
Negotiable
MOQ:
1
Delivery Time:
8 work days
Brand:
JAC
Product Description
| Characteristics | Manufacturer | JAC | |
| Model | CPD12 | ||
| Power unit | Battery | ||
| Operation | Seated | ||
| Rated traction weight | Q (t) | 1.2 | |
| Load centre | c (mm) | 400 | |
| Axle centre to fork face | x (mm) | 319 | |
| Wheel base | y (mm) | 1150 | |
| Weights | Service weight with battery | kg | 1945 |
| Wheels/Tyres | Wheels type | Solid rubber | |
| Driving wheel size | 4.00-8 | ||
| Bearing wheel size | 3.50-5 | ||
| Wheels, number front/rear (x = driven) | 2×/2 | ||
| Track width | b10 (mm) | 760 | |
| Track width | b11 (mm) | 185 | |
| Dimensions | Mast/fork carriage tilt, forward/backward | a/b (°) | 5/8 |
| Height of mast, lowered | h1 (mm) | 1985 | |
| Free lift | h2 (mm) | 0 | |
| Lift | h3 (mm) | 3000 | |
| Height of mast, extended | h4 (mm) | 3917 | |
| Height of overhead guard (cabin) | h6 (mm) | 1975 | |
| Height of seat/stand-on platform | h7 (mm) | 950 | |
| Overall length | l1 (mm) | 2415 | |
| Length to fork face | l2 (mm) | 1645 | |
| Overall width | b1/ b2 (mm) | 872/860 | |
| Fork dimensions | s/e/l (mm) | 32/100/770 | |
| Width of fork carriage | b3 (mm) | 800 | |
| Width of forks | m1 (mm) | 66 | |
| Min.Ground clearance | m2 (mm) | 69 | |
| Aisle width with pallet 1000 x 1200 across forks | Ast (mm) | 2975 | |
| Aisle width with pallet 800 x 1200 along forks | Ast (mm) | 3175 | |
| Min.Turning radius | Wa (mm) | 1460 | |
| Performance | Travel speed,laden/unladen | (km/h) | 7/9 |
| Lifting speed, with/without load | (mm/s) | 172/207 | |
| Lowering speed, with/without load | (mm/s) | 240/122 | |
| Climbing ability, with/without load | (%) | 10/15 | |
| Service brake | Hydraulic pressure | ||
| Drive | Drive motor, 60 minute rating | (kW) | 3.0 |
| Lift motor rating at S3 15% | (kW) | 4.0 | |
| Battery according to DIN 43531/35/36 A,B,C,no | no | ||
| Battery voltage/rated capacity | (V/Ah) | 24/400 | |
| Battery weight (± 5%) | (kg) | 310 | |
| Power consumption according to VDI cycle | (mm) | 745/320/532 | |
| Others | Type of drive control | AC | |
| Noise level at operator‘s ear | (dB(A)) | ≤70 | |
| Type of drive steering | EPS |
