Internal 2dBi GSM UMTS FPC 2G 3G Antenna Penta Band

Price Negotiable

Price: USD$ 0.3 / PCS - USD$ 0.35 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

Internal 2dBi PentaBand 2G (GSM) / 3G(UMTS) FPC Antenna

1. Product Name

Internal 2dBi PentaBand 2G (GSM) / 3G(UMTS) FPC Antenna

2. Description

--2.1 Applications

Penta Band EU / US GSM / WCDMA

Frequency Range : 850 / 900 / 1800 / 1900 / 2100 MHz

824-960 / 1710-2170 MHz

--2.2 Features

Small Form Factor

Mounting with Adhesive Tape

2dBi High Gain

Various Cable Length Available

Connector Optional

3. Introduction

This high gain FPC 2G 3G antenna allows for easy installation for customers' devices. Also can be used for small space applications with better reception and transmission

4. Specs

Electrical Properties

1.1	Frequency	824-960 / 1710-2170 MHz
1.2	Gain (peak)	2 dBi
1.3	V.S.W.R	2.0 MAX
1.4	Return Loss	-10dB Maximum

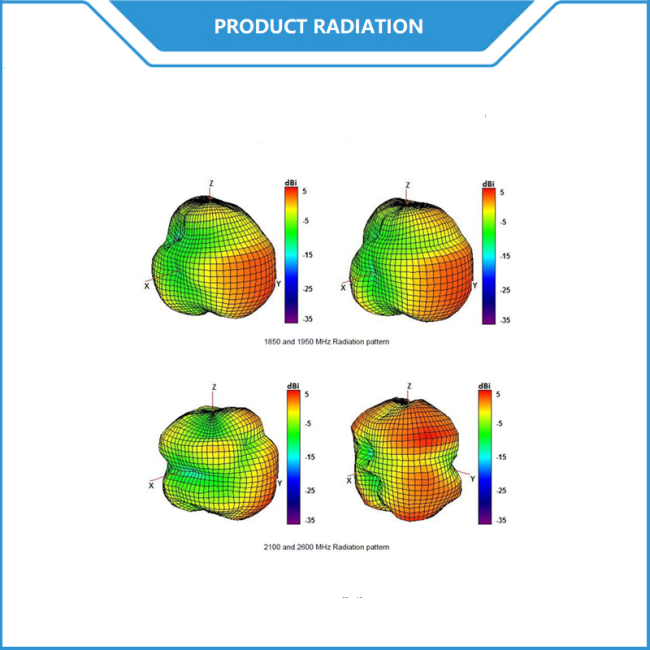

1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	1W

Mechanical Properties

2.1	Cable	RG 1.13
2.2	Antenna Cover	Polymer
2.3	Antenna Base	Sticker
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	IPEX (U.FL)
