External Wide Band 2G 3G 4G LTE Antenna SMA Mount Dipole Terminal Antenna

Price Negotiable

Price: USD$ 0.5 / PCS - USD$ 0.55 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

1. Product Name

External Wide Band 2G 3G 4G LTE SMA Mount Dipole Terminal Antenna

2. Description

--2.1 Applications

2G(GSM) / 3G (UMTS) / 4G LTE(700/2600MHz)

Infortainment Systems- HD Video Transmission-Dash Cameras

Fleet Management

Gateways

Routers

Public Logistics

--2.2 Features

2dBi High Gain

Wide Band

Dipole Structure

No Ground Plane Required

Good Efficiency

3. Introduction

This is an ultra wideband antenna that provides broad coverage from700-2700MHz and also can be compatible with most 4G LTE, 3G and 2G systems.

It is a high efficiency high gain omni directional antenna ideally suited for gateways, routers, access points, repeaters and other WLANs applications .

4. Specs

Electrical Properties

1.1	Frequency	700-2700 MHz
1.2	Gain (peak)	2 dBi
1.3	V.S.W.R	2.5 MAX

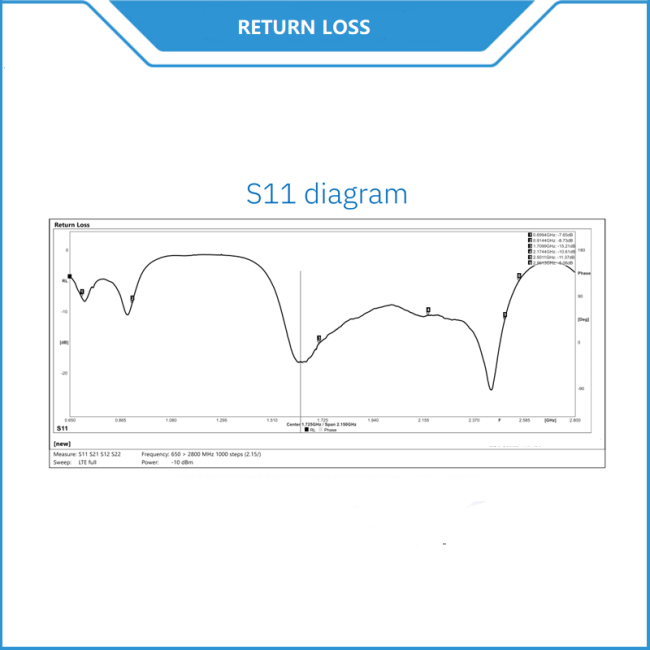

1.4	Return Loss	-10dB Maximum

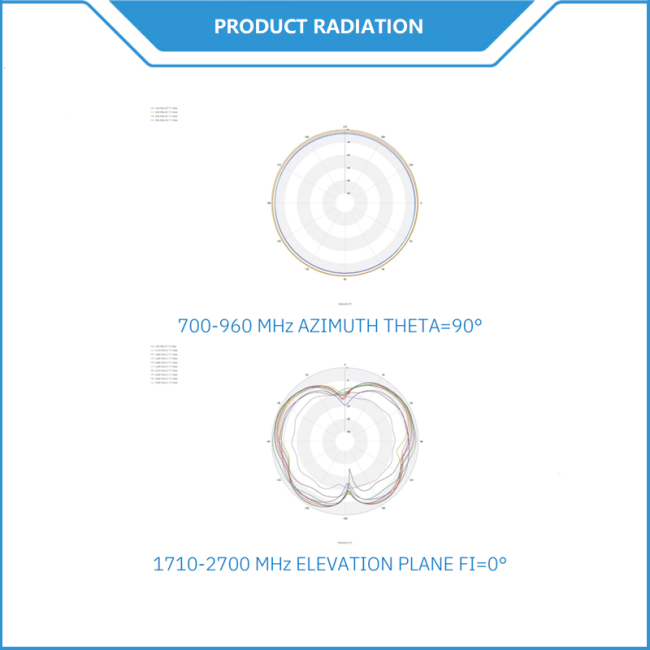

1.5	Radiation	Omni-Directional
1.6	Polarization	Linear / Vertical
1.7	Power Handling	2 W

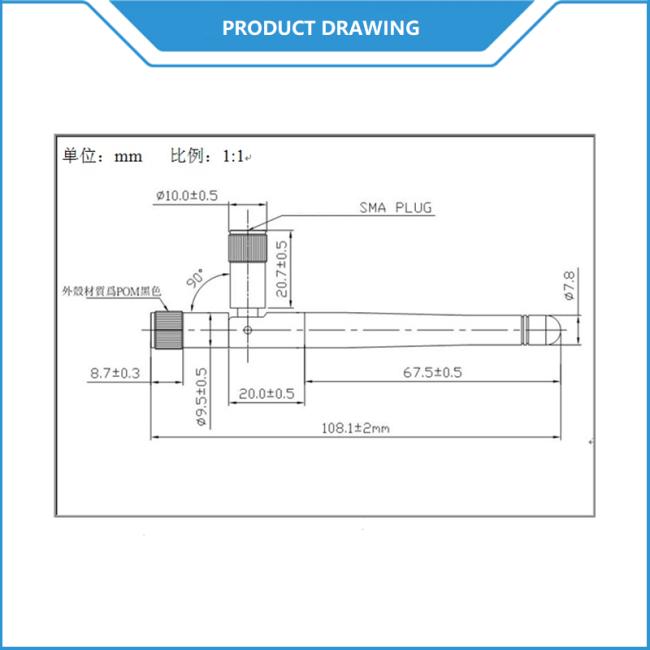

Mechanical Properties

2.1	Cable	RG178
2.2	Antenna Cover	TPE
2.3	Antenna Base	PB + PBT
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	SMA Plug
