Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna
1. Product Name
Outdoor 9dBi High Gain GSM/3G/4G LTE Cellular LPDA Antenna
2. Description
--2.1 Applications
GSM/CDMA/PCS/DCS/3G/4G/WLAN
Distributed Antenna Systems, DAS
Fixed Wireless Voice and Data Applications
IEEE802.11b/g/n Access Points and Routers
M2M Communications (ATMs, Financial Data Processing, Telemetry)
--2.2 Features
9dBi High Gain
Broad Band, Low VSWR
All Weather Operation
Ideal For Multiband Access Points and Routers
Supplied with Tilt and Swivel Mast Bracket
3. Introduction
This is a high performance wide band log periodic antenna designed to operate from 698-2700MHz. This wide design eliminates the need to purchase different antennas for each frequency. The simplified installation since the same antenna can be used for a wide array of wireless applications where wide coverage desired .
It is also ideal for distributed antenna system ,DAS. A DAS system is used to distribute cellular and WIFI signals throughout a building or area. It is suited for directional and multipoint IEEE 802.11b/g/n wireless LANs, public wireless hotspot applications and other systems operating in the 2.4GHz ISM band.
4. Specs
Electrical Properties
| 1.1 | Frequency | 700-2700MHz |
| 1.2 | Gain (peak) | 9 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Directional |
| 1.6 | Polarization | Vertical |
| 1.7 | Power Handling | 10W |
Mechanical Properties
| 2.1 | Cable | RG58 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | ABS |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black / White |
| 2.7 | Connector | N Female |

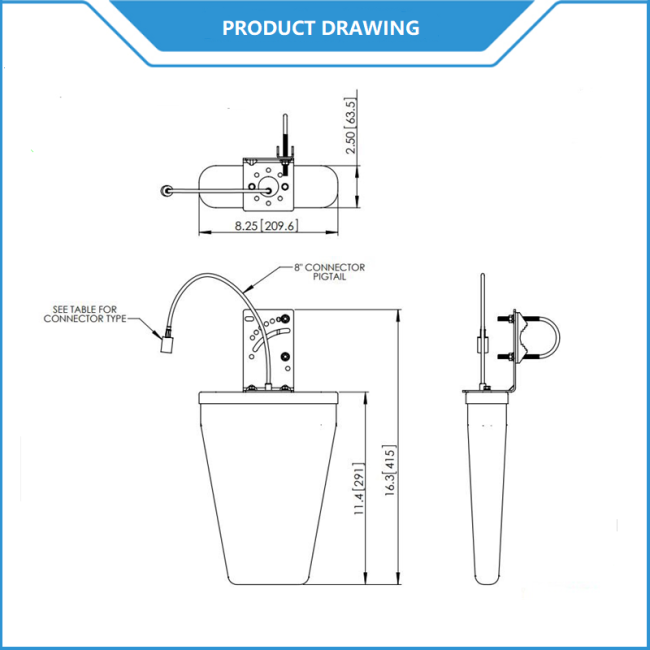

5. Antenna Drawing

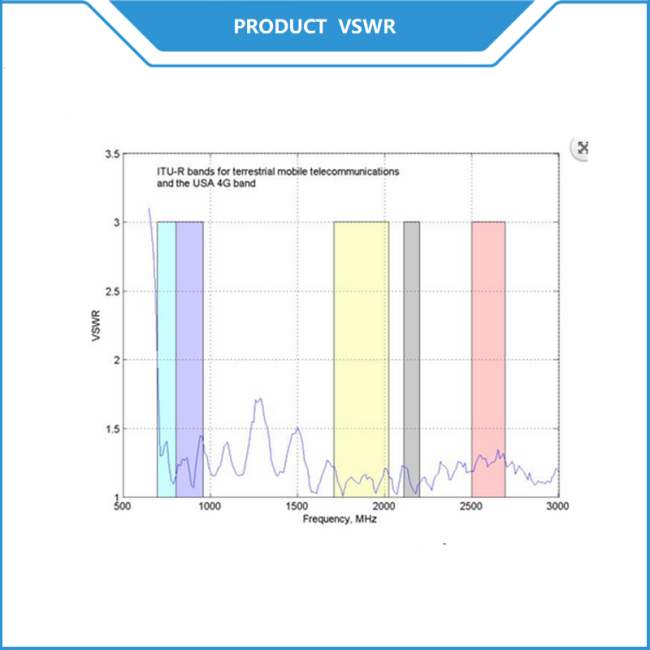

6. VSWR

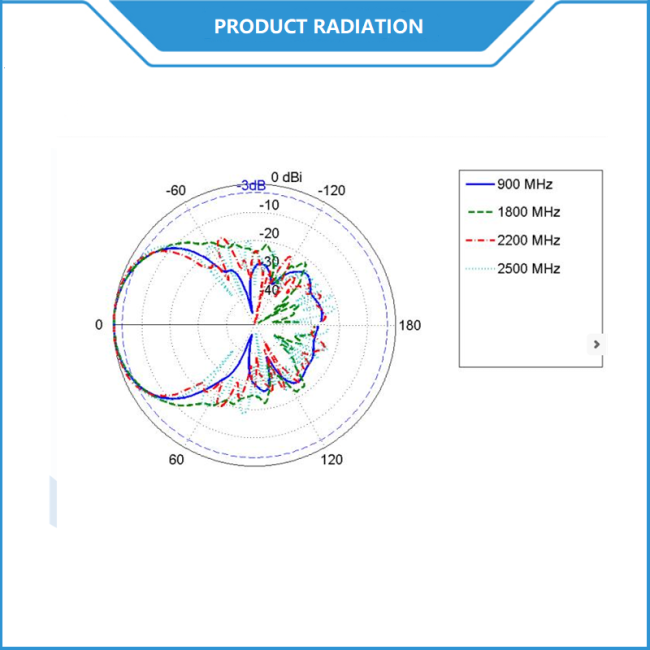

7. Radiation Pattern
