Internal 2dBi WIFI Bluetooth Antenna High Gain Embedded 2.4GHz FPC Antenna
Internal 2dBi High Gain Embedded 2.4GHz WIFI FPC Antenna
1. Product Name
Internal 2dBi High Gain Embedded 2.4GHz WIFI FPC Antenna
2. Description
--2.1 Applications:
Integrate into Wireless Devices
Embedded Wireless LANs' Equipment
2.4GHz Smart Camera
Bluetooth and Zigbee
--2.2 Features:
High Efficient
Omni-Directional
Low Profile and Compact Size
2dBi High Gain
IPEX (U.FL) Connector
3. Introduction
This is an omnidirectional antenna designed to integrate into devices requiring wireless signals. Also, this omni-directional design makes it ideal for multipoint and mobile wireless systems.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2.4 GHz ~ 2.5 GHz |
| 1.2 | Gain (peak) | 2 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | RG1.13 / RG1.37 |
| 2.2 | Antenna Cover | CU |
| 2.3 | Antenna Base | 3M Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | IPEX (U.FL) |

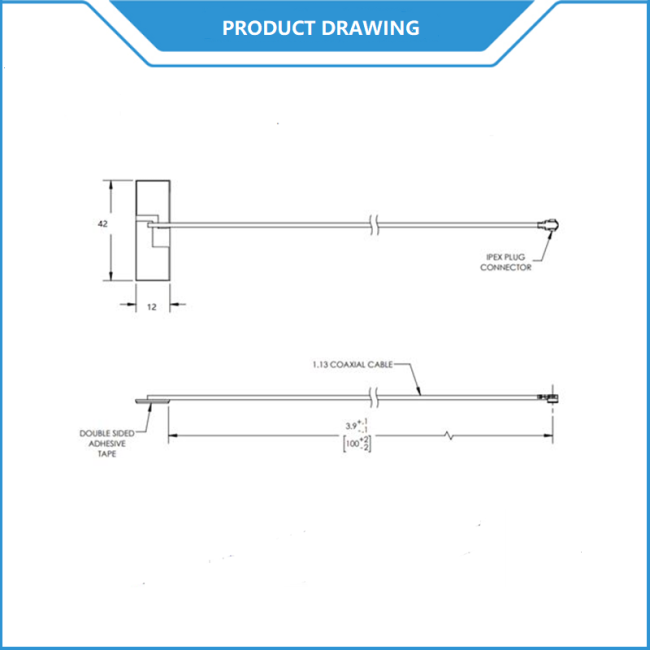

5. Antenna Drawing

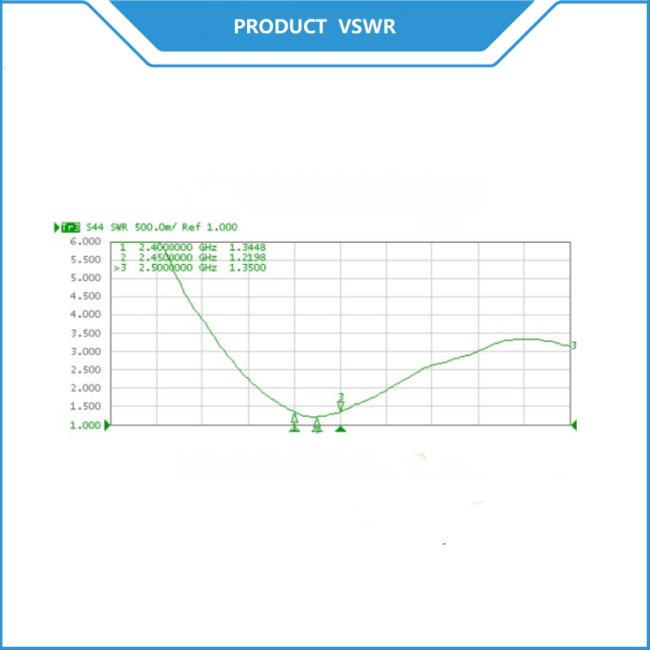

6. VSWR

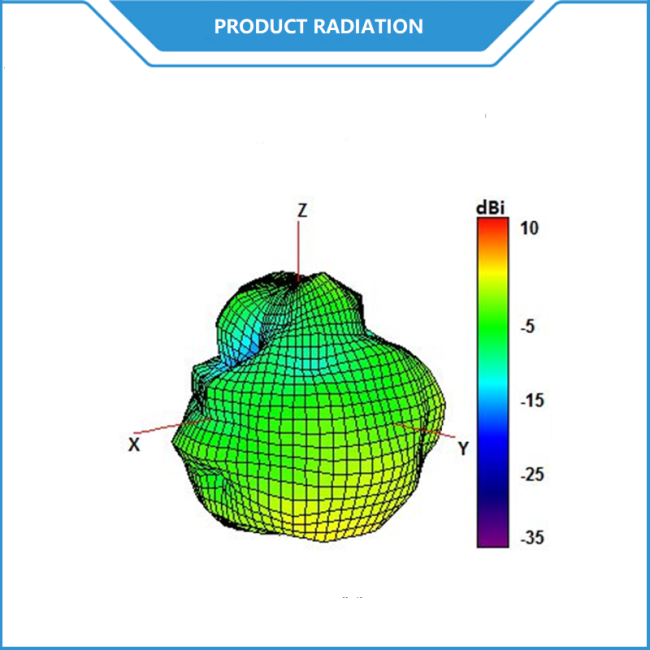

7. Radiation Pattern
