1. Product Name:
Indoor Amplified Digital HDTV TV Antenna
2. Description
Optimised reception for current DVB-T2 HD and DVB-T stations
Power supply possible via any USB port (television or desktop computer)
Wide range of set-up options and wall-mounting
Extremely thin DVB T2 antenna with with an excellent received unit
Extra-long 3m-5m supply cable
3. Applications
DVB-T (terrestrial) / DVB-T 2 (digital signal)
ATSC (terrestrial /cable)
ISDBT (terrestrial )/ ISDBTVD (Brazil )
DTMB (terrestrial –CHINA)
TDMB (terrestrial)
Features:
Suitable for digital (DVB-T/DVB-T2) terrestrial reception
Mounting possibility for horizontal and vertical polarization
Suitable for mast mounting
Frequency range: 470 – 862 MHz (UHF)
4. Specs
Electrical Properties
| 1.1 | Frequency | 470-862 MHz |
| 1.2 | Gain (peak) | 15 dBi |
| 1.3 | V.S.W.R | 2.5 MAX |
| 1.4 | Return Loss | -5 dB Maximum |
| 1.5 | Radiation | Omni-Directional |
| 1.6 | Polarization | Vertical |
| 1.7 | Power Handling | 1W |
Mechanical Properties
| 2.1 | Cable | 1.5C-2V Coaxial Cable |
| 2.2 | Antenna Cover | Cu |
| 2.3 | Antenna Base | Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black or White |
| 2.7 | Connector | F Male / USB |

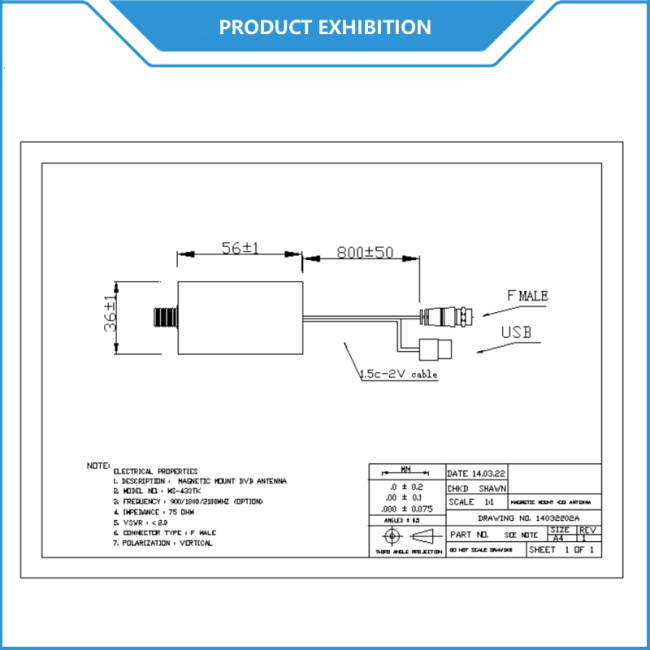

5. Antenna Drawing
6. VSWR On Passive Test
7. Radiation Pattern On Passive Test
8. Installation Guide
