External 3dBi Dual Band Antenna Adhesive Mount Flat Patch 2.4GHz 5.8 Ghz Directional Antenna
External 3dBi Dual Band 2.4GHz/5.8GHz Adhesive Mount Flat Patch Antenna
1. Product Name
External 3dBi Dual Band 2.4GHz/5.8GHz Adhesive Mount Flat Patch Antenna
2. Description
--2.1 Applications
WIFI / Bluetooth / Zigbee (2.4GHz)
WIFI (5GHz)
WIFI (5.1-5.9GHz)
Intergrated in Wireless Equipment
Embedded Applications Requiring Integration
Wireless LANs
--2.2 Features
High Efficient Design
Low Frofile, Compact Size
Omni Directional Applications
Connectors Optionals
RoHS Compliant
3. Introduction
It is a high efficient and easy to install antenna for providing WIFI coverage, also, this type of antenna are easily positioned on a device housing or vehicle windscreen using the supplied automotive industry grade adhesive patch.
It is ground plane independent making it ideal for applications distributing or receiving WIFI signal . Covering 2.4/5GHz is designed to support the full range of WIFI frequencies.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2400-2483 / 5150-5850 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear / Vertical |
| 1.7 | Power Handling | 5 W |
Mechanical Properties
| 2.1 | Cable | RG 174 |
| 2.2 | Antenna Cover | ABS |
| 2.3 | Antenna Base | Sticker |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug / BNC / FME / FAKRA |

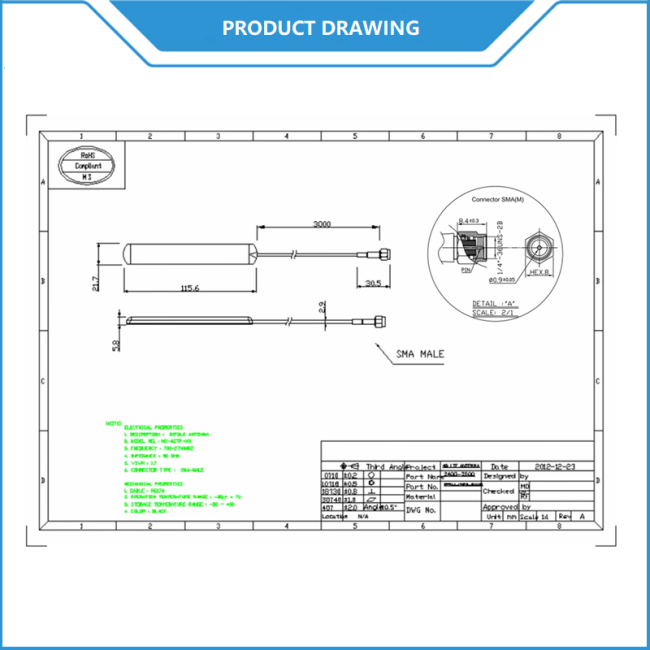

5. Antenna Drawing

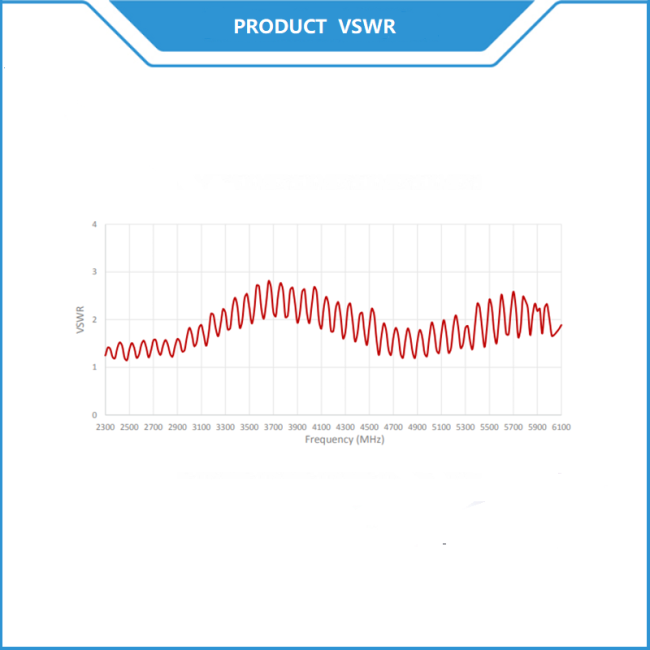

6. VSWR

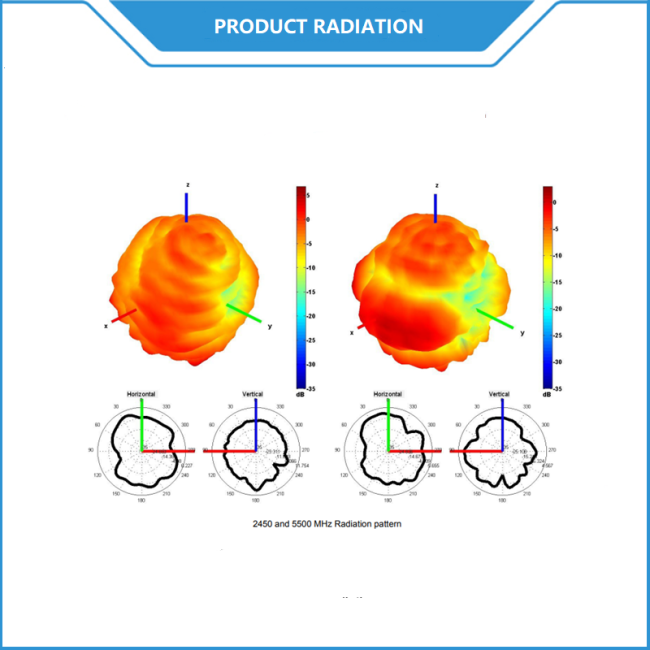

7. Radiation Pattern
