Handheld External UHF RFID Antenna 3dBi ISM 868MHz Terminal Mount Dipole Antenna
External 3dBi ISM 868MHz Terminal Mount Dipole Antenna
1. Product Name
External 3dBi ISM 868MHz Terminal Mount Dipole Antenna
2. Description
--2.1 Applications
Smart Metering
RFID
Remote Monitoring
Remote Control
Industrial IoT
Lora
Connected Enterprises
--2.2 Features
ISM 868MHz Band Operation
High Efficiency 65%
Hinged and Swivel
198mm in Height
Diameter: 13 mm
3. Introduction
This is a high performance 868MHz terminal mount dipole antenna, it is 198mm in height and 13mm in diameter and it can be mounted straight or right angled due to its hinged SMA Male connector which comes as standard. This antenna performs quite well in free space, making it ideal for in areas where there may be no ground plane.
4. Specs
Electrical Properties
| 1.1 | Frequency | 868 MHz |
| 1.2 | Gain (peak) | 3 dBi |
| 1.3 | V.S.W.R | 2.0 MAX |
| 1.4 | Return Loss | -10dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 5W |
Mechanical Properties
| 2.1 | Cable | RG 178 |
| 2.2 | Antenna Cover | TPE |
| 2.3 | Antenna Base | PC + PBT |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | SMA Plug |

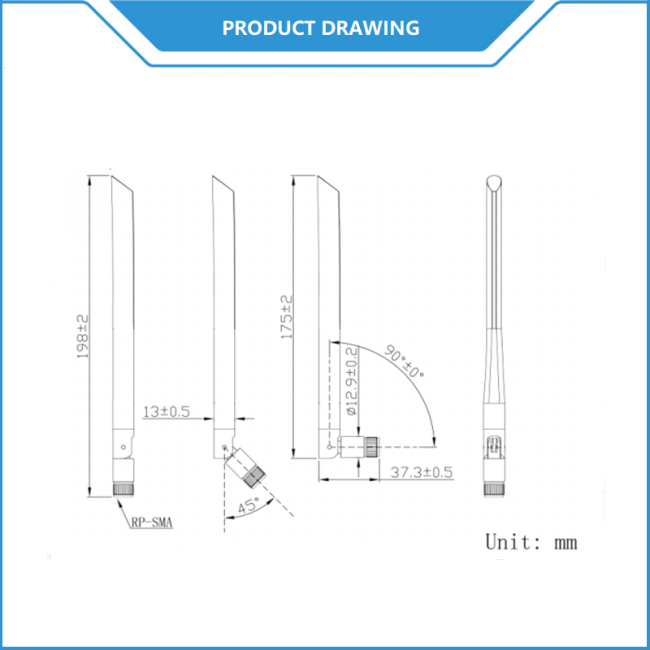

5. Antenna Drawing
6. Return Loss
7. Radiation Pattern
