Outdoor Omni Directional WIFI Bluetooth Antenna 2.4GHz WLAN Fiberglass Antenna
Outdoor Omni Directional 2.4GHz WLAN Fiberglass Antenna
1. Product Name
Outdoor Omni Directional 2.4GHz WLAN Fiberglass Antenna
2. Description
--2.1 Applications
2.4G-2.5G
IEEE802.11b, 802.11g,802.11n Wireless LAN
Bluetooth
Public Wireless Hotspot
Wireless Video Systems
--2.2 Features
8dBi High Gain
Superior Performance
Light Weight
All Weather Operation
Installed for Vertical
N Male or N Female Connector
3. Introduction
Thisis a quite compact high performance omnidirectional WIFI antenna designed for 2.4GHz ISM band. It is ideally suited for multipoint and mobile applications where high gain and wide coverage is desired. Additional applications include IEEE 802.11b and 802.11g wireless LANs, Bluetooth , public wireless applications.
4. Specs
Electrical Properties
| 1.1 | Frequency | 2.4 GHz ~ 2.5 GHz |
| 1.2 | Gain (peak) | 8dBi |
| 1.3 | V.S.W.R | 1.5 MAX |
| 1.4 | Return Loss | -15dB Maximum |
| 1.5 | Radiation | Omni-directional |
| 1.6 | Polarization | Linear Vertical |
| 1.7 | Power Handling | 100W |
Mechanical Properties
| 2.1 | Cable | RG58U |
| 2.2 | Antenna Cover | Fiberglass |
| 2.3 | Antenna Base | Brass + Alu |
| 2.4 | Operating Temperature | -20℃ ~ +65℃ |
| 2.5 | Storage Temperature | -30℃ ~ +75℃ |
| 2.6 | Color | Black |
| 2.7 | Connector | N Male or N Female |

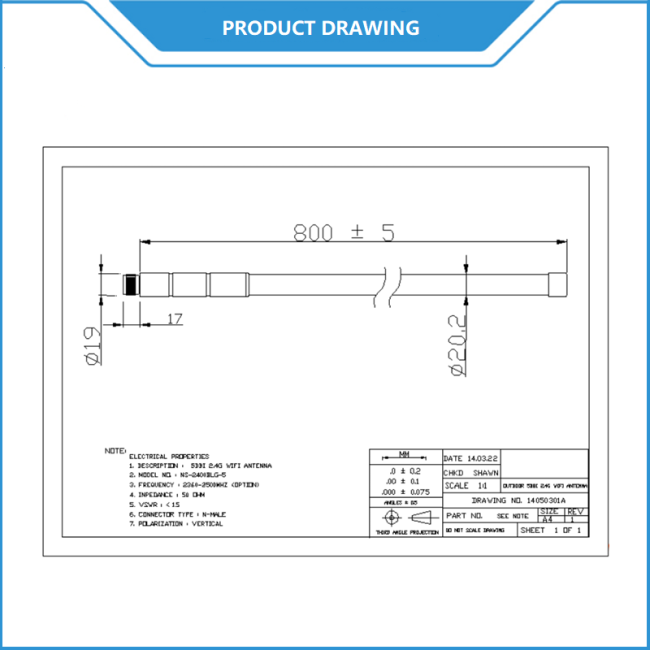

5. Antenna Drawing

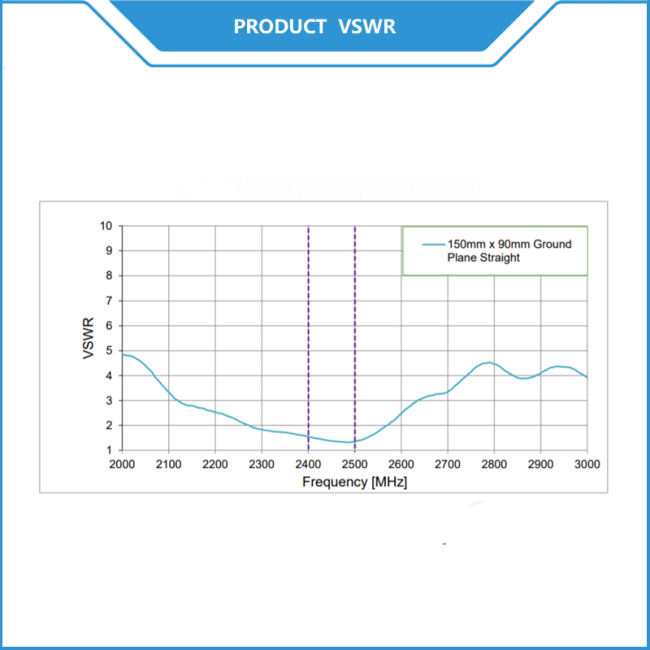

6. VSWR

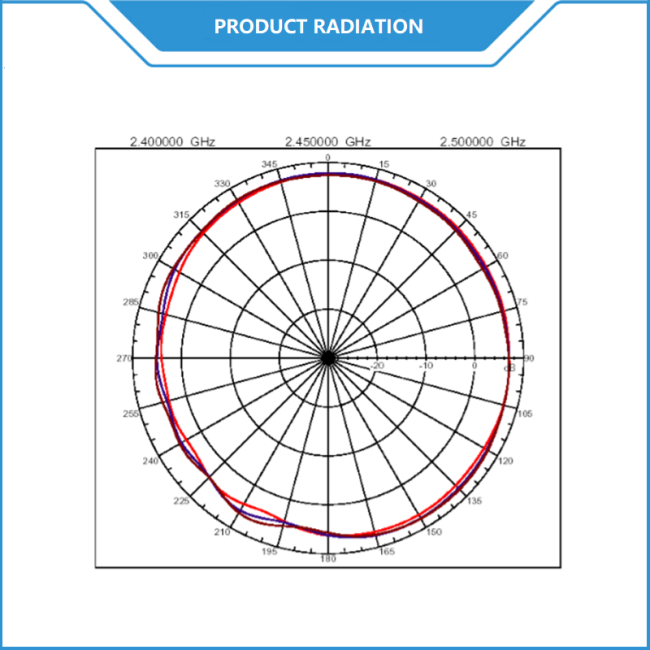

7. Radiation Pattern
