868mhz Dipole UHF Whip Antenna External 3dbi High Gain M6 Screw Mount

Price Negotiable

Price: USD$ 1 / PCS - USD$ 1.2 / PCS

MOQ: 100 PCS

Delivery Time: 5-8 days

Brand: MS

Product Description

External 3dBi High Gain M6 Screw Mount 868MHz Whip Antenna

1. Product Name

External 3dBi High Gain M6 Screw Mount 868MHz Whip Antenna

2. Description

--2.1 Applications

Smart Metering

Remote Monitoring

Industrial IOT

Connected Enterprise

--2.2 Features

3dBi High Gain

External Use

M6 Screw Mount

868MHz RFID

3. Introduction

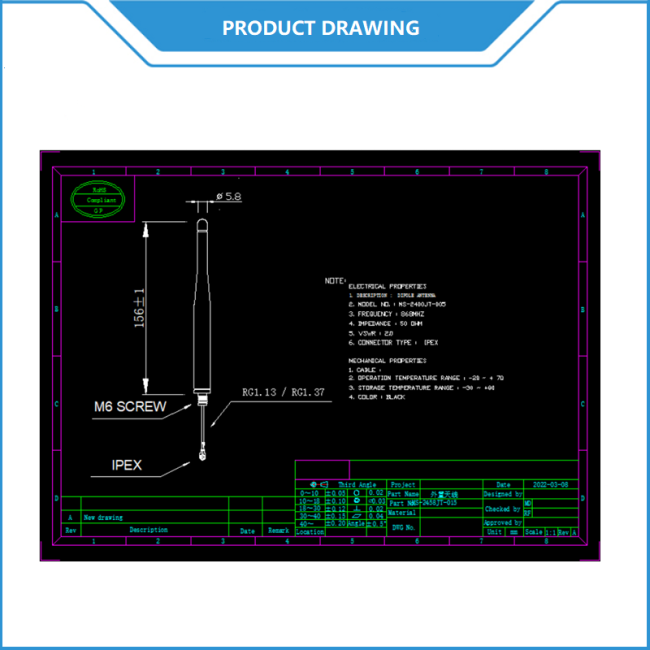

This is a high gain 868MHz terminal screw mount dipole antenna, it is 156mm in length and 13mm in diameter can be mounted in straight direction which comes as a standard M6 screw mount.

This antenna performs quite well in free space, making it an ideal solution in areas where there may be no ground plane.

4. Specs

Electrical Properties

1.1	Frequency	868 MHz
1.2	Gain (peak)	3 dBi
1.3	V.S.W.R	2.0 MAX

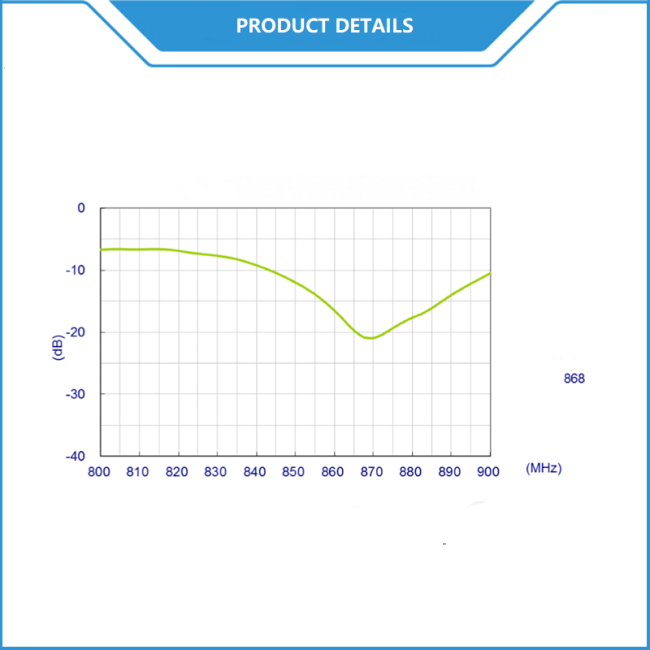

1.4	Return Loss	-10dB Maximum

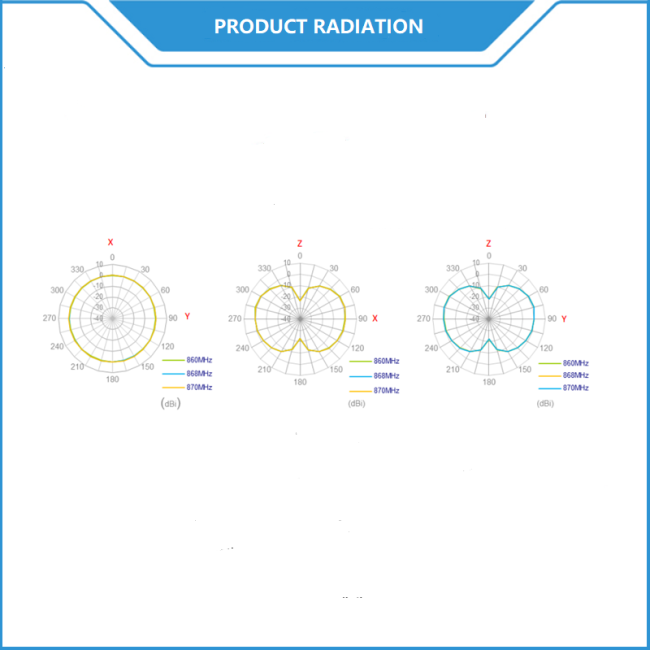

1.5	Radiation	Omni-directional
1.6	Polarization	Linear Vertical
1.7	Power Handling	5W

Mechanical Properties

2.1	Cable	RG1.13 / RG1.37
2.2	Antenna Cover	TPEE
2.3	Antenna Base	Brass
2.4	Operating Temperature	-20℃ ~ +65℃
2.5	Storage Temperature	-30℃ ~ +75℃
2.6	Color	Black
2.7	Connector	IPEX (U.FL)
